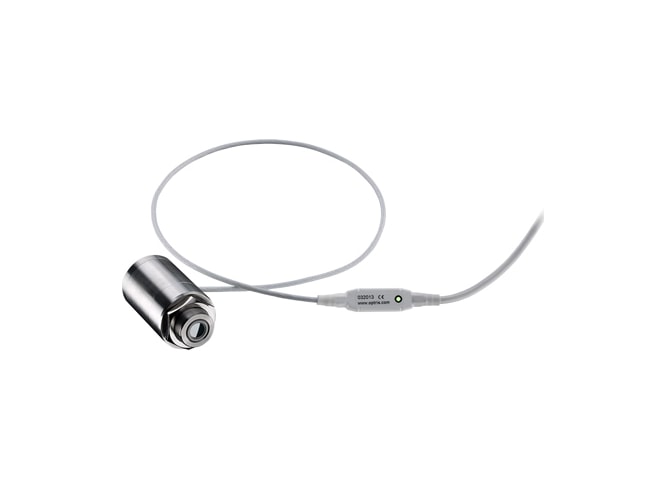

Optris CSmicro LT HS Thermometer

Compact IR thermometer designed for temperature ranges of metals from -4 to 302°F, 8 to 14 µm spectral range.

Optris CSmicro LT HS Thermometer

Retired products cannot be ordered

The Optris CSmicro LT / LTH Thermometer is the recommended replacement

View Company Reviews

Manufactured

By Optris

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Low noise IR pyrometry
Temperature range: -4 to 302°F (-20 to 150°C)
Environmental rating IP65 (NEMA-4)
Stainless steel measuring head
Spectral range: 8 to 14 µm
Output type:
- CSMV model: 0 to 5V, 0 to 10V
- CSMA model: 4 to 20mA (2 wire)
M12x1, 28mm long
Response time: 150ms
±1.0% accuracy
Optical resolution: 15:1

Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

The Optris CSmicro LT HS Thermometer measures the slightest temperature differences of 0.025 K. The stainless steel measuring head is compact making it ideal for limited or cramped spaces. The stainless steel measuring head is perfectly suited for installation in especially limited and cramped spaces. The LT HS has a temperature range from -4 to 302°F (-20 to 150°C) and is equipped with an intelligent LED display, utilizable as alarm signalization, target support, self-diagnosis or temperature-code display.

The CSmicro series can now be operated via the new IR mobile App (Android). The App enables to monitor and analyze infrared temperature measurements on a connected smartphone or tablet.

Spec Sheets

Optris CSmicro LT HS Thermometer Datasheet PDF (495 KB)

Manuals

Optris CSmicro LT HS Thermometer Manual PDF (1.6 MB)

Links

Software

Optris Compact Connect Software

Optris Compact Connect Software

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

Accessories

Please consider these optional accessories.

Optris ACCTMB Mounting Bolt

Optris ACCTMB Mounting Bolt

M12 x 1 thread, adjustable in one axis .

Optris CT / CS Mounting Bracket

Optris CT / CS Mounting Bracket

Available as 1 or 2 axis & double hole M12, designed for 12mm sensing heads.

Some Models in Stock

Starting at $28.00

Optris ACCTMG Mounting Fork

Optris ACCTMG Mounting Fork

M12 x 1 thread, adjustable in two axes, compatible with CT / CS ACCTFB fixed single axis mounting bracket.

Optris ACC Air Purge Collar

Optris ACC Air Purge Collar

Available for optics ≥10:1, ≤2:1, laminar & laminar with integrated CF-lens.

Some Models in Stock

Starting at $38.00

Optris ACCTPW Protective Window

Optris ACCTPW Protective Window

For LT series, same mechanical size as CF lens, available with external thread M12x1.

Starting at $43.00

Optris ACCTCF CF Lens

Optris ACCTCF CF Lens

For LT series, available with external thread M12 x 1.

Starting at $55.00

Optris ACCTRAM Right Angle Mirror

Optris ACCTRAM Right Angle Mirror

Enables measurements with 90° angle to sensor axis, for sensing heads with optical resolution ≥10:1.

Optris ACCSCERT Calibration Certificate

Optris ACCSCERT Calibration Certificate

Certificate of calibration for CS/ CSmicro LT with 3 reference temperatures.

Optris ACCTTAM25 Thread Adapter

Optris ACCTTAM25 Thread Adapter

M12x1 to M25x1.5 thread adapter includes 2 mounting nuts .
