Optris CSmicro LT / LTH Infrared Temperature Sensor

Fixed, compact infrared pyrometer measures the temperature of metals from -58 to 1886°F, 8 to 14 µm spectral range.

Starting at $250.00

View Company Reviews
Manufactured
Includes
Availability
Product Family
Product Manual Product Specs

Features

  • M12x1, 28mm long
  • Stainless steel housing
  • Temp ranges: -58 to 1886°F (-50 to 1,030°C)
  • Spectral range: 8 to 14 µm
  • Response time:
    • 14 ms (LT)
    • 150 ms (LTH)
  • Output type:
    • CSMV model: 0 to 5V, 0 to 10V
    • CSMA model: 4 to 20mA (2 wire)
  • ±1.0% accuracy
  • Optical resolution:
    • 22:1 (LT22H)
    • 15:1 (LT15 / LT15H)
    • 2:1 (LT02)
Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

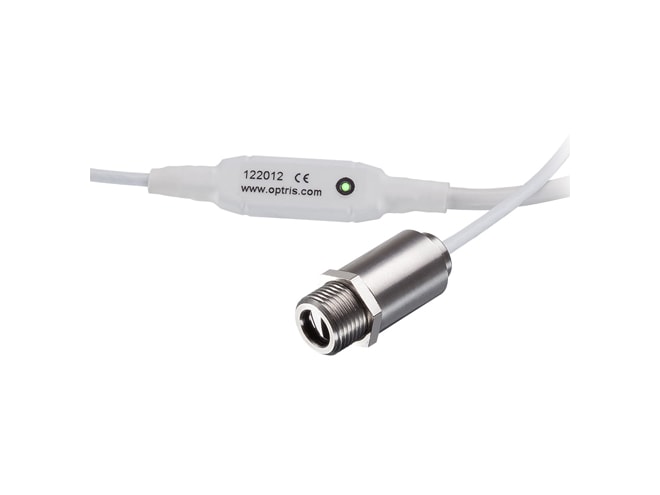

The Optris CSmicro LT / LTH infrared temperature sensor features a miniaturized stainless steel measuring head that is suited for installation in limited spaces. The size and its temperature resistance up to 356°F (180°C) make the mechanical integration of the measuring head especially cost-efficient.

The LED display works as an alarm signal, target support, temperature-code display, and self-diagnosis. The electric components inside the cable allow for high-temperature resistance of the measuring head.

The CSmicro series can now be operated via the new IR mobile App (Android). The App enables monitoring and analyzing infrared temperature measurements on a connected smartphone or tablet.

Software

Optris Compact Connect Software
Optris Compact Connect Software

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

$0.00

Accessories

Please consider these optional accessories.

Optris ACCTMB Mounting Bolt
Optris ACCTMB Mounting Bolt

M12 x 1 thread, adjustable in one axis .

$28.00
Optris CT / CS Mounting Bracket
Optris CT / CS Mounting Bracket

Available as 1 or 2 axis & double hole M12, designed for 12mm sensing heads.

Some Models in Stock
Starting at $28.00
Optris ACCTMG Mounting Fork
Optris ACCTMG Mounting Fork

M12 x 1 thread, adjustable in two axes, compatible with CT / CS ACCTFB fixed single axis mounting bracket.

$65.00
Optris ACC Air Purge Collar
Optris ACC Air Purge Collar

Available for optics ≥10:1, ≤2:1, laminar & laminar with integrated CF-lens.

Some Models in Stock
Starting at $38.00
Optris ACCTPW Protective Window
Optris ACCTPW Protective Window

For LT series, same mechanical size as CF lens, available with external thread M12x1.

Starting at $43.00
Optris ACCTCF CF Lens
Optris ACCTCF CF Lens

For LT series, available with external thread M12 x 1.

Starting at $55.00
Optris ACCTRAM Right Angle Mirror
Optris ACCTRAM Right Angle Mirror

Enables measurements with 90° angle to sensor axis, for sensing heads with optical resolution ≥10:1.

$75.00
Optris ACCSCERT Calibration Certificate
Optris ACCSCERT Calibration Certificate

Certificate of calibration for CS/ CSmicro LT with 3 reference temperatures.

$140.00
Optris ACCTTAM25 Thread Adapter
Optris ACCTTAM25 Thread Adapter

M12x1 to M25x1.5 thread adapter includes 2 mounting nuts .

$53.00
Optris ACCSMIAC IR App Connector
Optris ACCSMIAC IR App Connector

USB adapter cable with Micro-USB plug and adapters for USB-C and USB-A, compatible with IRmobile (Android) and CompactConnect (Windows).

In Stock
$52.00
Optris ACCTTAS Tilt Assembly
Optris ACCTTAS Tilt Assembly

For heads with optical resolution ≥10:1.

$65.00
Part Number Price Available
OPTCSMALT15SF305
Show Configuration
$276.00 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 8-10 weeks ". Click here to select options
