E+H Proline Promag D 400 Electromagnetic Flow Meter
Select options for pricing

Endress+Hauser

Some models in stock. View available part numbers.

Need Help? Call a Flow Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Measures volume flow and mass flow
  • ACS, KTW/W270, NSF 61, WRAS BS 6920 drinking water approval
  • DN 25 to 100 (1 to 4 in.) nominal diameter range
  • 32 to 140°F (0 to 60°C) media temperature range
  • 2.5 to 1250 gal/min measuring range
  • Up to 3 Outputs:
    • 0‐20 mA/4‐20 mA HART (active)
    • Pulse/frequency/switch output (passive)
    • Pulse/frequency output (passive)
    • Switch output (passive)
  • ±0.5 % o.r. ± 1 mm/s (0.04 in/s) maximum measured error
  • PN 16, Class 150, 10K maximum process pressure
  • No pressure loss due to cross-section constriction
  • 4-line backlit display with touch control & WLAN access
  • HART, PROFIBUS DP, EtherNet/IP, Modbus RS485 digital communications
  • IP66/67, Type 4X standard enclosure
  • Heartbeat Technology (optional)

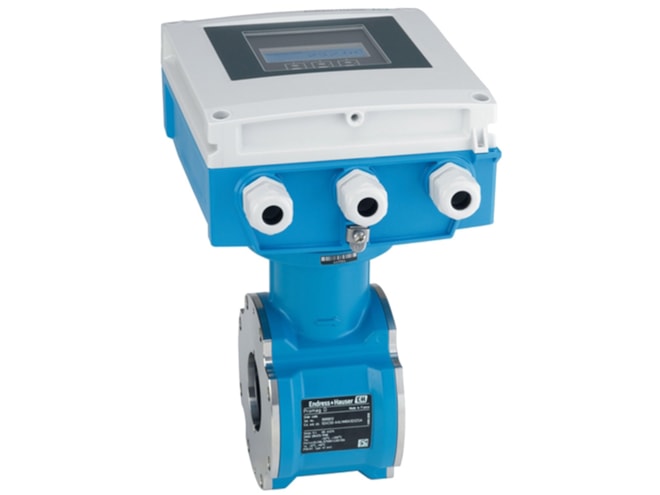

The E+H Proline Promag D 400 electromagnetic flow meter measures volume flow and mass flow. It features a compact wafer design that is optimized for limited space and plastic pipe installations in the water and wastewater industries. The bidirectional measuring principle is not dependent on pressure, density, temperature and viscosity. Because it has no moving parts, the Promag D 400 is maintenance-free and applications suffer no pressure loss due to cross-section constriction.

E+H transmitters do not require proprietary communication system, rather they offer full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. The D 400 allows for up to three analog or digital outputs. Digital communication options include HART, PROFIBUS DP, EtherNet/IP and Modbus RS485. This E+H flow meter is housed in an IP66/67, Type 4X enclosure standard.

The E+H Proline Promag D 400 electromagnetic flow meter can measure flow from 2.5 up to 1,250 gal/min and can handle media temperatures from 32 to 140°F (0 to 60°C). The maximum measured error of the Proline Promag D 400 is ±0.5 % of reading ± 1 mm/s. Optional Heartbeat Technology ensures compliance and process safety at all times.

E+H Promag Grounding Rings
1/2 to 48 inch options available
$79.75

Applications

This product can be used in the following applications:

Part Number Price Available
5D4C80-AALHP5D3A1ZGAPD [50ft]
Show Configuration
Size
3in, DN80
Approval
Non-hazardous area
Power Supply
100-240 VAC / 24 VAC/VDC
Output / Input
4-20mA HART, pulse/freq, switch output
Housing
Remote, aluminum coated
Cable, Remote Version
Custom length in feet
Cable Length
50ft
Electrical Connection
Thread NPT1/2
Process Connection
Class 150 ASME B16.5
Calibration Flow
0.5%
Language
None (English standard)
Display
None
Customized Parameterization
None
Application Package
None
Service
None
Additional Approval
None
Accessory Enclosed
Mounting kit, steel zinc coated
Firmware Version
None
Marking
Without
Tagging Options
Not available with current marking selection
Reconfigure
Call for pricing 1

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks. Call for expedite options". Click here to select options
