E+H Proline Promag H 500 Electromagnetic Flow Meter

Remote transmitter with 4 I/Os for demanding hygienic applications in food and beverage and life sciences industries.

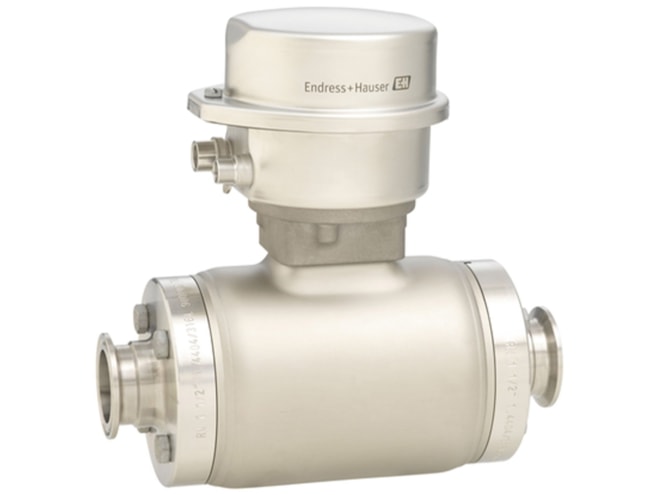

E+H Proline Promag H 500 Electromagnetic Flow Meter - Hygienic Housing
E+H Proline Promag H 500 Electromagnetic Flow Meter - Aluminum Housing
E+H Electromagnetic Flow Measuring Principle Video

Starting at $5,672.50

Effective May 12th, 2025, Endress+Hauser has added a 4.5% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping (some models excluded)
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

1.4301 (304), stainless hygienic housing
DN 2 to 150 (1/12 to 6 in.) nominal diameter range
–4 to 302°F (–20 to 150°C) media temperature range
0.015 to 2,650 gal/min measuring range
Up to 4 Outputs:
- 4-20 mA HART (active/passive)
- 4-20 mA WirelessHART
- 4-20 mA (active/passive)
- Pulse/frequency/switch output (active/passive)
- Double pulse output (active/passive)
1.4404/316L tri-clamp fitting, most common hygienic style fitting in the US
IP69 - direct water jet spray and wash down resistant
Heartbeat verification + monitoring (optional)
Wetted materials CIP/SIP cleanable
3-A approval available, common food and beverage US stamp
EtherNet/IP - future-proofing
- Relay output
Maximum Measured Error:
- Volume flow (standard): ±0.5%
- Volume flow (optional): ±0.2%
PN 40, Class 150, 20K maximum process pressure
No pressure loss due to cross-section constriction
4-line backlit display with touch control & WLAN access
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA digital communications
IP66/67, Type 4X standard enclosure
- IP69 (optional for remote sensor)
ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC (options)
Predecessors: Promag 50H, Promag 53H, Promag 55H

Predecessor: Promag 50H, Promag 53H, and Promag 55H

Common Use: Brewery, winery, food, and beverage

The E+H Proline Promag H 500 electromagnetic flow meter measures volume flow, temperature, conductivity and mass flow as well as corrected volume flow and corrected conductivity. It is designed for for hygienic applications with highest requirements in the food and beverage and life sciences industries. The bidirectional measuring principle is not dependent on pressure, density, temperature and viscosity. Because it has no moving parts, the Promag H 500 is maintenance-free and applications suffer no pressure loss due to cross-section constriction.

E+H transmitters do not require proprietary communication system, rather they offer full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. The H 500 allows for up to four analog or digital outputs. Digital communication options include HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, and OPC-UA. This E+H flow meter is housed in an IP66/67, Type 4X enclosure standard, while IP69 protection is also available as an option for the remote sensor.

The E+H Proline Promag H 500 electromagnetic flow meter can measure flow from 0.015 gal/min up to 2,650 gal/min and can handle a media temperature range of -4 to 302°F (-20 to 150°C). The standard maximum measured error is ±0.5 % of reading ± 1 mm/s and the Proline Promag H 500 offers an improved accuracy of ±0.2 % of reading ± 2 mm/s. Optional Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV-attestation).

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input 1	Output and Input 2	Output and Input 3	Output and Input 4	Process Connection	Additional Approval	Price	Available
5H5B1F-AAINADDAFAABALFFAS0AA1LP Show Full Configuration	6in, DN150	Non-hazardous area	EtherNet/IP 2-port switch integrated	Configurable I/O default off	Configurable I/O default off	Without	Tri-Clamp, 1.4404/316L	3A	$11,697.10	2 in stock
5H5B50-AAIBAEDDFAABAAFFAS0AA2 Show Full Configuration	2in, DN50	Non-hazardous area	4-20 mA HART	Pulse/freq/switch output	Configurable I/O default off	Configurable I/O default off	Tri-Clamp, 1.4404/316L	Without	$6,376.35	1 in stock

Base Price:: $4,539.95
Size: 6in, DN150 (+$3,168.47)
Approval: Non-hazardous area
Power Supply: 100 to 230 VAC / 24 VDC
Output and Input 1: EtherNet/IP 2-port switch integrated (+$390.94)
Output and Input 2: Configurable I/O default off (+$116.67)
Output and Input 3: Configurable I/O default off (+$116.67)
Output and Input 4: Without
Display and Operation: 4-line illuminated and touch control (+$410.82)
Integrated ISEM Electronic: Sensor
Transmitter Housing: Aluminum coated
Sensor Junction Housing: Stainless, hygienic
Cable, Sensor Connection: Not used
Cable Length: Selection not available
Electrical Connection: Thread NPT1/2 + 1x plug M12x1 (+$93.22)
Seal: Aseptic shape, EPDM
Process Connection: Tri-Clamp, 1.4404/316L (+$2,743.15)
Electrodes: 1.4435/316L
Calibration Flow: 0.5%
Device Model: 1 (+$117.21)
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: 3A
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Verizon: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $4,539.95
Size: 2in, DN50 (+$492.59)
Approval: Non-hazardous area
Power Supply: 100 to 230 VAC / 24 VDC
Output and Input 1: 4-20 mA HART
Output and Input 2: Pulse/freq/switch output (+$77.60)
Output and Input 3: Configurable I/O default off (+$116.67)
Output and Input 4: Configurable I/O default off (+$116.67)
Display and Operation: 4-line illuminated and touch control (+$410.82)
Integrated ISEM Electronic: Sensor
Transmitter Housing: Aluminum coated
Sensor Junction Housing: Stainless, hygienic
Cable, Sensor Connection: Not used
Cable Length: Selection not available
Electrical Connection: Gland M20
Seal: Aseptic shape, EPDM
Process Connection: Tri-Clamp, 1.4404/316L (+$622.05)
Electrodes: 1.4435/316L
Calibration Flow: 0.5%
Device Model: 2
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Verizon: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
5H5B02-AAIBAAAAFAAAJDAA1S0AA2	Call for information	2	Call to order
5H5B08-AAIBAAAAFAAAJDAO1V1AA2	Call for information	2	Call to order
5H5B02-CSIBADDAGAAALDBA1PBDA2AAEB	Call for information	5	Call to order
5H5B1H-AAIBAAAAFADBJDGFAS0AA1LP	Call for information	2	Call to order
5H5B15-CSIBADAAFAABBDCA1P1BA2AACMDHEBECP	Call for information	2	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
