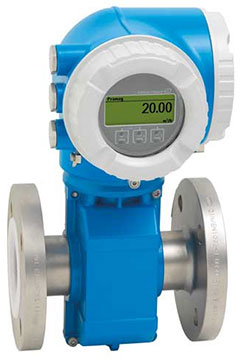

E+H Proline Promag P 300 Electromagnetic Flow Meter
Starting at $4,184.59

Some models in stock. View available part numbers.

Need Help? Call a Flow Engineer 1-800-884-4967

We're open Mo-Fr 8:30am to 5:00pm ET

Features

  • Measures volume flow, conductivity & mass flow
  • DN 15 to 600 (1/2 to 24 in) nominal diameter range
  • Media Temperature Ranges:
    • PFA liner: –4 to 302°F (–20 to 150°C)
    • PFA high-temp liner: –4 to 356°F (–20 to 180°C)
    • PTFE liner: –40 to 266°F (–40 to 130°C)
  • Up to 3 Outputs:
    • 4-20 mA HART (active/passive)
    • 4-20 mA WirelessHART
    • Pulse/frequency/switch output (active/passive)
    • Relay output
  • Maximum Measured Error:
    • Volume flow (standard): ±0.5%
    • Volume flow (optional): ±0.2%
  • PN 40, Class 300, JIS 20K maximum process pressure
  • No pressure loss due to cross-section constriction
  • 4-line backlit display option
  • IP66/67, Type 4X standard enclosure
    • IP69 (optional)
  • ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC (optional)
  • Heartbeat Technology (optional)
  • Predecessors include: Promag 50E, Promag 50P, Promag 51P, Promag 53E, Promag 53P

The E+H Proline Promag P 300 electromagnetic flow meter measures volume flow, conductivity and mass flow. It is designed for chemical and process applications with corrosive liquids and the highest media temperatures. The bidirectional measuring principle is not dependent on pressure, density, temperature and viscosity. Because it has no moving parts, the Promag P 300 is maintenance-free and applications suffer no pressure loss due to cross-section constriction.

E+H transmitters do not require proprietary communication system, rather they offer full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. The P 300 allows for up to three analog or digital outputs. Digital communication options include HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, and OPC-UA. This E+H flow meter is housed in an IP66/67, Type 4X enclosure standard, while IP69 protection is also available as an option.

The E+H Proline Promag P 300 electromagnetic flow meter can measure flow from 1 gal/min up to 44,000 gal/min and is available with a PFA or PTFE liner. The PFA liner can handle application media from -4 to 302°F (standard) or 356°F (high-temperature option) and the PTFE liner offers a temperature range of -40 to 266°F. The standard maximum measured error is ±0.5 % of reading ± 1 mm/s and the Proline Promag P 300 offers an improved accuracy of ±0.2 % of reading ± 2 mm/s. Optional Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV-attestation).

Predecessors for the P 300 include Promag 50E, Promag 50P, Promag 51P, Promag 53E and Promag 53P.

E+H Promag Grounding Rings
1/2 to 48 inch options available
$79.75

Applications

This product can be used in the following applications:

Fast Track Stock

This stock is typically available to ship in 1 - 2 working days

Part Number Price Available
5P3B1H-CSIMADDGADEA1KGAA1
Show Configuration
Base Price
$4,184.59
Size
4in, DN100 (+$1,007.71)
Approval
CSA C/US; CI.I Div. 2, NI
Power Supply
100 to 230 VAC / 24 VDC
Output / Input 1
Modbus RS485 (+$304.94)
Output / Input 2
Configurable I/O default off (+$91.01)
Output / Input 3
Configurable I/O default off (+$91.01)
Display / Operation
4-line illuminated; touch control + WLAN (+$472.94)
Electrical Connection
Thread NPT1/2
Liner Material
PTFE
Process Connection
Cl 150, carbon steel, flange ASME B16.5
Electrodes
1.4435/316L, bullet nose
Calibration Flow
0.5%
Device Model
1
Language
None (English standard)
Sensor Option
Without
Customized Parameterization
Without
Application Package
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$6,152.20 20
5P3B80-CSIMADAGADEA2K1AA1
Show Configuration
Base Price
$4,184.59
Size
3in, DN80 (+$610.32)
Approval
CSA C/US; CI.I Div. 2, NI
Power Supply
100 to 230 VAC / 24 VDC
Output / Input 1
Modbus RS485 (+$304.94)
Output / Input 2
Configurable I/O default off (+$91.01)
Output / Input 3
Without
Display / Operation
4-line illuminated; touch control + WLAN (+$472.94)
Electrical Connection
Thread NPT1/2
Liner Material
PTFE
Process Connection
Cl 300, carbon steel, flange ASME B16.5 (+$381.20)
Electrodes
Alloy C22 (+$107.91)
Calibration Flow
0.5%
Device Model
1
Language
None (English standard)
Sensor Option
Without
Customized Parameterization
Without
Application Package
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$6,152.91 12
5P3B80-CSIMADDGADAA1K0AA1EB
Show Configuration
Base Price
$4,184.59
Size
3in, DN80 (+$610.32)
Approval
CSA C/US; CI.I Div. 2, NI
Power Supply
100 to 230 VAC / 24 VDC
Output / Input 1
Modbus RS485 (+$304.94)
Output / Input 2
Configurable I/O default off (+$91.01)
Output / Input 3
Configurable I/O default off (+$91.01)
Display / Operation
4-line illuminated; touch control + WLAN (+$472.94)
Electrical Connection
Thread NPT1/2
Liner Material
PFA (+$363.62)
Process Connection
Cl 150, carbon steel, flange ASME B16.5 (+$220.52)
Electrodes
1.4435/316L
Calibration Flow
0.5%
Device Model
1
Language
None (English standard)
Sensor Option
Without
Customized Parameterization
Without
Application Package
Heartbeat Verification + Monitoring (+$488.32)
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$6,827.27 2
5P3B1F-AAIBAEDGAAED3K0AA1EB
Show Configuration
Base Price
$4,184.59
Size
6in, DN150 (+$2,242.53)
Approval
Non-hazardous area
Power Supply
100 to 230 VAC / 24 VDC
Output / Input 1
4-20 mA HART
Output / Input 2
Pulse/freq/switch output (+$60.54)
Output / Input 3
Configurable I/O default off (+$91.01)
Display / Operation
4-line illuminated; touch control + WLAN (+$472.94)
Electrical Connection
Gland M20
Liner Material
PTFE
Process Connection
PN16, carbon steel, flange EN1092-1 (DIN2501)
Electrodes
1.4435/316L
Calibration Flow
0.5%
Device Model
1
Language
None (English standard)
Sensor Option
Without
Customized Parameterization
Without
Application Package
Heartbeat Verification + Monitoring (+$488.32)
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$7,539.93 1
5P3B25-AAIBAAAFADEA1K2AA1
Show Configuration
Base Price
$4,184.59
Size
1in, DN25
Approval
Non-hazardous area
Power Supply
100 to 230 VAC / 24 VDC
Output / Input 1
4-20 mA HART
Output / Input 2
Without
Output / Input 3
Without
Display / Operation
4-line illuminated; touch control (+$320.46)
Electrical Connection
Thread NPT1/2
Liner Material
PTFE
Process Connection
Cl 150, carbon steel, flange ASME B16.5
Electrodes
Tantalum (+$1,126.02)
Calibration Flow
0.5%
Device Model
1
Language
None (English standard)
Sensor Option
Without
Customized Parameterization
Without
Application Package
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$5,631.07 1
5P3B2H-CSIMAAAFADEA1K1AA1
Show Configuration
Base Price
$4,184.59
Size
8in, DN200 (+$3,406.35)
Approval
CSA C/US; CI.I Div. 2, NI
Power Supply
100 to 230 VAC / 24 VDC
Output / Input 1
Modbus RS485 (+$304.94)
Output / Input 2
Without
Output / Input 3
Without
Display / Operation
4-line illuminated; touch control (+$320.46)
Electrical Connection
Thread NPT1/2
Liner Material
PTFE
Process Connection
Cl 150, carbon steel, flange ASME B16.5 (+$220.52)
Electrodes
Alloy C22 (+$107.91)
Calibration Flow
0.5%
Device Model
1
Language
None (English standard)
Sensor Option
Without
Customized Parameterization
Without
Application Package
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$8,544.77 1
5P3B3H-AAINAAAFADEA1KGBA1
Show Configuration
Base Price
$4,184.59
Size
12in, DN300 (+$10,460.34)
Approval
Non-hazardous area
Power Supply
100 to 230 VAC / 24 VDC
Output / Input 1
EtherNet/IP 2-port switch integrated (+$304.94)
Output / Input 2
Without
Output / Input 3
Without
Display / Operation
4-line illuminated; touch control (+$320.46)
Electrical Connection
Thread NPT1/2
Liner Material
PTFE
Process Connection
Cl 150, carbon steel, flange ASME B16.5 (+$220.52)
Electrodes
1.4435/316L, bullet nose
Calibration Flow
0.2% (+$404.64)
Device Model
1
Language
None (English standard)
Sensor Option
Without
Customized Parameterization
Without
Application Package
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$15,895.49 1
5P3B50-AAINAAAFASEA1K2AA1
Show Configuration
Base Price
$4,184.59
Size
2in, DN50
Approval
Non-hazardous area
Power Supply
100 to 230 VAC / 24 VDC
Output / Input 1
EtherNet/IP 2-port switch integrated (+$304.94)
Output / Input 2
Without
Output / Input 3
Without
Display / Operation
4-line illuminated; touch control (+$320.46)
Electrical Connection
Thread NPT1/2 + 2x plug M12x1 (+$145.45)
Liner Material
PTFE
Process Connection
Cl 150, carbon steel, flange ASME B16.5 (+$220.52)
Electrodes
Tantalum (+$1,126.02)
Calibration Flow
0.5%
Device Model
1
Language
None (English standard)
Sensor Option
Without
Customized Parameterization
Without
Application Package
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$6,301.98 1
5P3B50-CSIBAAAFADEA1KGAA1
Show Configuration
Base Price
$4,184.59
Size
2in, DN50
Approval
CSA C/US; CI.I Div. 2, NI
Power Supply
100 to 230 VAC / 24 VDC
Output / Input 1
4-20 mA HART
Output / Input 2
Without
Output / Input 3
Without
Display / Operation
4-line illuminated; touch control (+$320.46)
Electrical Connection
Thread NPT1/2
Liner Material
PTFE
Process Connection
Cl 150, carbon steel, flange ASME B16.5 (+$220.52)
Electrodes
1.4435/316L, bullet nose
Calibration Flow
0.5%
Device Model
1
Language
None (English standard)
Sensor Option
Without
Customized Parameterization
Without
Application Package
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$4,725.57 1
5P3B80-AAINAAAFASEA1K2AA1
Show Configuration
Base Price
$4,184.59
Size
3in, DN80 (+$610.32)
Approval
Non-hazardous area
Power Supply
100 to 230 VAC / 24 VDC
Output / Input 1
EtherNet/IP 2-port switch integrated (+$304.94)
Output / Input 2
Without
Output / Input 3
Without
Display / Operation
4-line illuminated; touch control (+$320.46)
Electrical Connection
Thread NPT1/2 + 2x plug M12x1 (+$145.45)
Liner Material
PTFE
Process Connection
Cl 150, carbon steel, flange ASME B16.5 (+$220.52)
Electrodes
Tantalum (+$1,126.02)
Calibration Flow
0.5%
Device Model
1
Language
None (English standard)
Sensor Option
Without
Customized Parameterization
Without
Application Package
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$6,912.30 1

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks. Call for expedite options". Click here to select options
