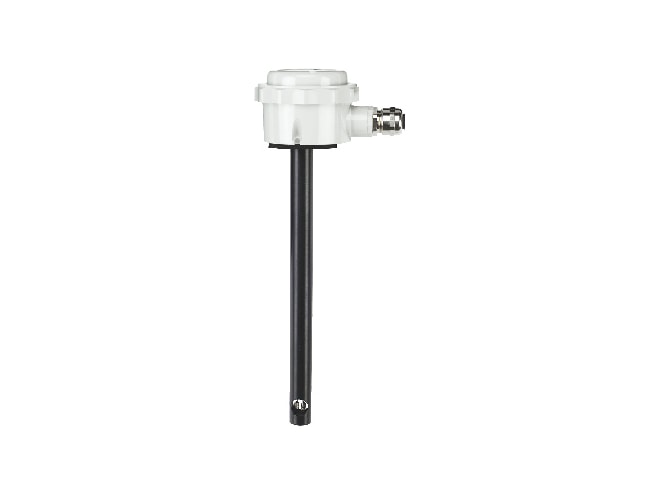

Dwyer AVU Air Velocity Transmitter

Ideal for building automation systems, ±5% or ±8% FS accuracy, NEMA 6 (IP67) enclosure rating.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • 4 to 20 mA or 0 to 10 V output versions
  • NEMA 6 (IP67) enclosure rating
  • Ranges available:
    • 0 to 785 FPM (0 to 4 m/s)
    • 0 to 1575 FPM (0 to 8 m/s)
    • 0 to 3150 FPM (0 to 16 m/s)
  • AC or DC powered (loop version DC only)
  • 5% or 8% accuracy

The Dwyer AVU Air Velocity Transmitter is ideal for a wide range of HVAC measurement and control applications, particularly in complete building control and energy management systems. The Series AVU Transmitter operates by measuring the heat loss from one of the two sensing elements in the air stream, then calculating the air velocity. Units are virtually immune to drift due to the design of the sensing element, which makes the transmitter accurate over the whole air velocity range.

Applications for the AVU include:

  • Zone control in HVAC systems
  • Supply and exhaust fan tracking
  • Clean room systems
  • Air pollution studies and manufacturing
