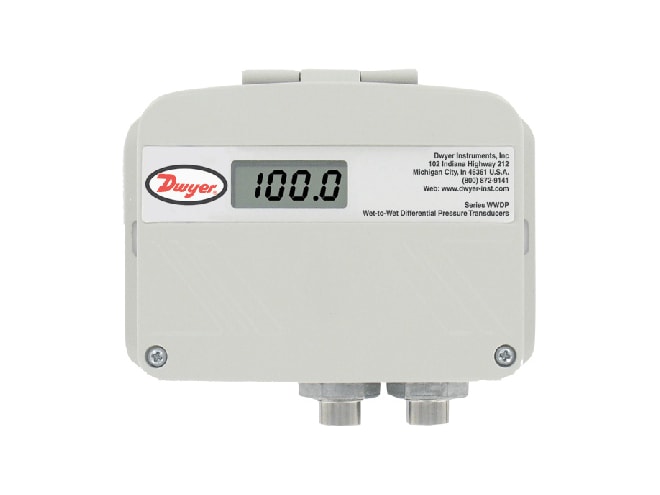

Dwyer WWDP Differential Pressure Transmitter

Selectable ranges of uni-directional or bi-directional, selectable output, ranges from 5 up to 250 psid.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-5 business days
Product Manual Product Specs

Features

  • Uni-directional or bi-directional
  • Selectable outputs
  • Gas or liquid compatible
  • Accuracy: ±1 FS or ±2% FS (low range)
  • Field selectable
  • NEMA 4 rated enclosure
  • 0 to 5, 1 to 5, 0 to 10 VDC, and 4 to 20 mA outputs

The Dwyer WWDP Differential Pressure Transmitter offers everything in one package by having 30 field selectable variations in just 3 models. The WWDP provides field selectable unidirectional and bidirectional pressure ranges, configurable 0 to 5, 1 to 5, 0 to 10 VDC, and 4 to 20 mA output. It also provides an auto-zero capability. The field selectable port swap feature eliminates costly re-plumbing if the unit is improperly installed or if the transmitter is simply replaced. An optional LCD display is available for on-sight indication of line and differential pressure. The all cast aluminum housing is rated NEMA 4 (IP66). These features make the WWDP transmitter an ideal instrument for measuring the flow of various liquids and gases, pressure drop across filters, measurement of liquid level or pressurized vessels, and for use in energy management and process control systems.

Applications for the WWDP include:

  • Chiller monitoring
  • Filter monitoring
  • Liquid level
  • Pressure vessels
  • Process control
  • Energy management
