Starting at $285.00

Usually ships in 3-5 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 0.5% Accuracy
  • NEMA 4X (IP66) Enclosure
  • Dual pressure sensors
  • Removable terminal block
  • LCD indicator option
  • 4 to 20 mA or voltage output signal

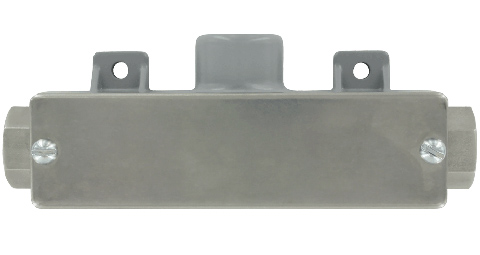

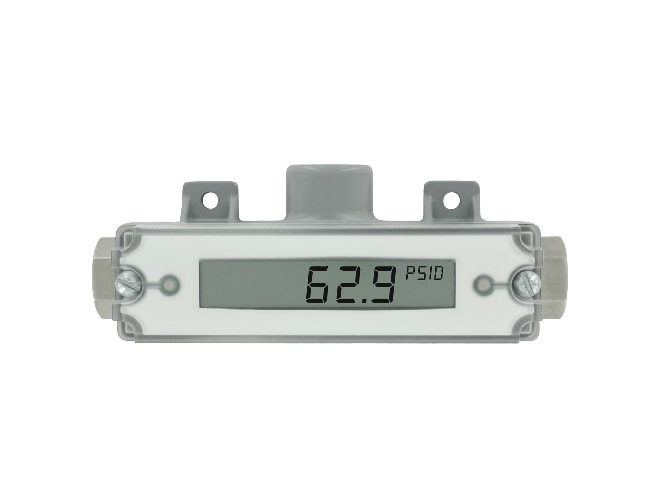

The Dwyer 629 Series Differential Pressure Transmitter monitors differential pressure of air and compatible gases and liquids with 0.5% accuracy. The design employs dual pressure sensors converting pressure changes into a standard 4 to 20 mA output signal or field selectable voltage. Small internal volume and minimal moving parts result in exceptional response and reliability. The terminal block, as well as a zero adjustment button, are easily accessed under the top cover. The Series 629C Differential Pressure Transmitter is designed to meet NEMA 4X (IP66) construction.

Applications for the 629C include:

  • Flow elements
  • Heat exchangers
  • Filters
  • Coils
  • Chiller
  • Pumps
Dwyer A-155 Cable Gland
Cable gland with 1/2" male NPT fitting
$16.00
Dwyer A-228 Flex Hose
Stainless steel flex hose, 12in (30.48 cm) long, 1/8in male NPT connections
$34.75
Dwyer BBV-1B  3-valve block manifold
Mini 3-valve block manifold
$127.00
Dwyer A-62X-LCD LCD Display
Field upgradeable LCD display
$130.00
Dwyer A-629C-3V 3-Way manifold
3-Way manifold & bracket for pressure transmitters
$121.00
