Dwyer 607D Differential Pressure Transmitters

Mounts on 35 mm DIN rail, LED status indication, ±0.25% FS accuracy, 15 psi (100 kPa) pressure limits.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Air and non-conductive, noncorrosive gases
  • DIN mountable
  • 302 SS, glass, nickel, silicone rubber, brass materials
  • ±0.25% FS accuracy
  • LED status indication
  • 15 psi (100 kPa) pressure limits
  • 4 to 20 mA output signal

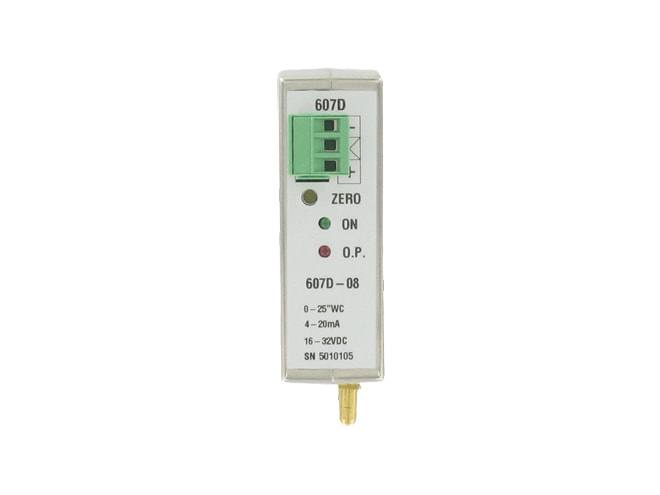

The Dwyer 607D Differential Pressure Transmitters Transmitter senses the pressure of air and compatible gases and sends a standard 4 to 20 mA output signal. The 607D housing is specifically designed to mount on a 35 mm DIN rail in a panel. This mounting style allows for several units to be mounted closely together reducing required space. A wide range of models are available factory calibrated to 0.25% full scale accuracy in ranges from the very low 0.1 in w.c. to 25 in w.c. The span and zero controls are for field calibration. Units also include red/green LED status of proper transmitter operation. Versatile circuit design enables operation in 2-wire current loops.

Applications for the 607D include:

  • HVAC
  • Clean room control
  • Filter status
