Dwyer DPT Digital Pressure Transmitter
Starting at
$612.00

Call for availability [?]

instrumart-trustpilot-badge

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 3-way rotating design
  • Large 14-segment LED display
  • Two programmable solid state switches
  • 4 to 20 mA & 0 to 10 VDC outputs available
  • Thin-film piezoresistive sensor technology
  • Pressure ranges from vacuum to 1,000 psi

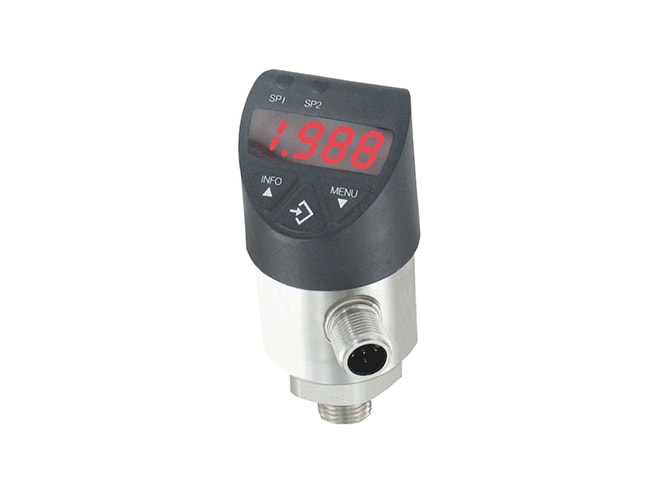

The Dwyer DPT digital pressure transmitter features a unique 3-way rotating design that eliminates the need for retrofitting. The display and electrical connection can be rotated independently to maximize visibility while still orienting the electrical connection in the best position for the cable connector. A 14-segment LED display with large push buttons allow for quick and easy programming of the DPT in the field.

Featuring two programmable solid state switches make the Dwyer DPT digital pressure transmitter an ideal solution for a variety of applications including calibration, hydraulics and pneumatics, machine tools, compressors and pumps, and machine building. Pressure ranges for this Dwyer pressure transmitter are available from -14.5 to 0 psi (vacuum) up to 0 to 1,000 psig and any range can be paired with a 4 to 20 mA or 0 to 10 VDC output. The DPT offers an accuracy of ±1.0% full-scale including non-linearity, hysteresis and zero point.

Dwyer  A-195 Shielded Cable
6 ft (2 m) shielded cable with 5 pin female M-12 connections
$41.50
Dwyer NISTCAL-PT1 NIST Calibration Certificate
NIST traceable calibration certificate for pressure transmitters
$139.00
