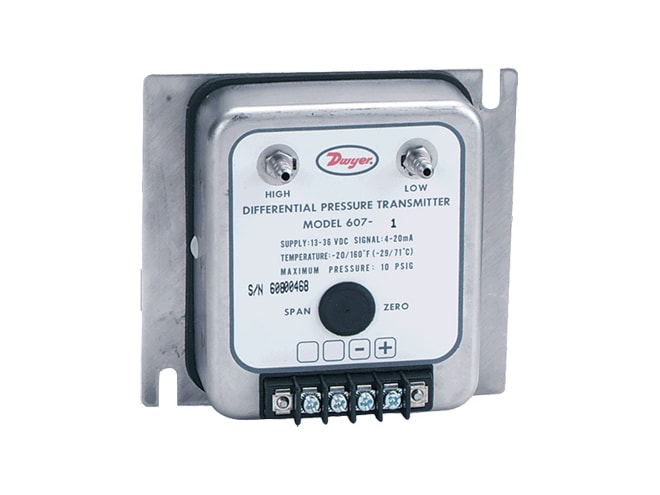

Dwyer 607 Differential Pressure Transmitters
Starting at $495.00

Not in stock. Usually ships in 3-5 business days [?]

Need Help? Call a Temperature Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET


  • Air and non-conductive, non-corrosive gases
  • ±0.5% or ±0.25% FS accuracy
  • Ranges from 0 to 0.1in w.c.
  • 10 psig (0.69 bar) pressure limits
  • ±0.5% FS/yr stability
  • Stainless steel housing
  • Resists shock and vibration

The Dwyer 607 Differential Pressure Transmitters combine very low ranges with exceptional stability, reliability and either ±0.25% or ±0.5% accuracy for the most demanding applications. Ranges from 0-0.1" to 0-25" w.c. Ultra thin glass clad silicon diaphragm design resists shock and vibration, practically eliminates drift. Certification to NIST standards is included with each unit. Tough stainless steel housing is NEMA 2 rated to protect against moisture and dirt. Use with air and other compatible gases.

Applications for the 607 include:

  • Leak Detection
  • Clean Room Control
  • Lab and Fume Hood Pressure Control
Dwyer A-302F-A Static Pressure Tip
303 SS static pressure tip with mounting flange; for 3/16˝ ID rubber or plastic tubing; 4˝ insertion depth; includes mounting screws
Dwyer NISTCAL-PT1 NIST Calibration Certificate
NIST traceable calibration certificate for pressure transmitters
