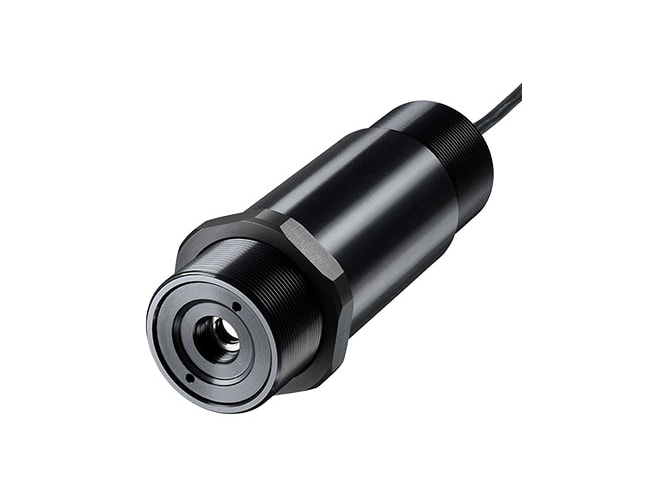

Optris CX hs Infrared Temperature Sensor
High sensitivity fixed infrared pyrometer measures temperature differences as small as 0.025K with a -4 to 302°F temperature range & low noise.
Overview
Features
- -4 to 302°F temperature range
- ±1% or ±1.8°F accuracy
- 0.025K temperature resolution
- 15:1 optical resolution
- 8-14µm spectral range
- 150ms response time
- 4 to 20mA analog output
- 0.1 to 1.1 emissivity
- Ultra low noise
- Solid state design without moving parts
- IP65 NEMA-4 rated
What's in the Box
- 8m cable
- Mounting nut
- Calibration certificate
- Manual
Description
The Optris CX hs infrared temperature sensor has a temperature resolution of 0.025K to measure the slightest temperature differences from -4 to 302°F. It delivers highly accurate results while maintaining a low level of noise. It is engineered specifically for low ambient temperature drift applications and is well-suited for measuring the temperatures of circuit boards.
Adjustable parameters include signal processing, peak hold, valley hold, average, extended hold function with threshold, and hysteresis. The Optris CX hs has a 4 to 20mA analog output, 0 to 30V/ 500mA open collector alarm output, and optional USB digital output.
The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.
