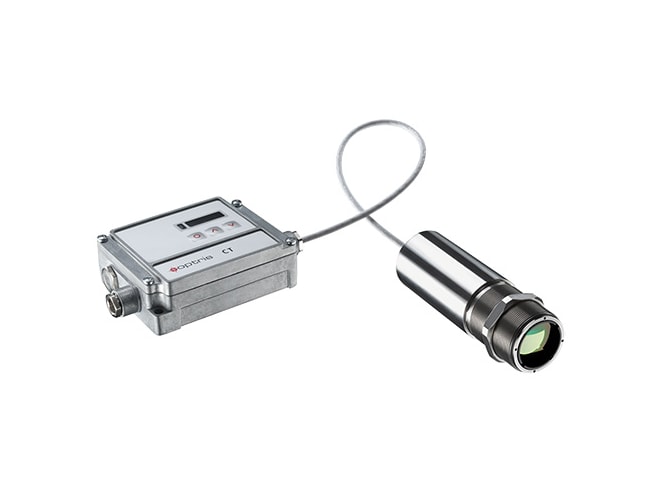

Optris CT XL 3M Infrared Thermometer

Temperature measurement from 212 to 3272°F for laser processing applications with 1ms response time & 2.3μm spectral range.

Retired products cannot be ordered

Please contact Instrumart for a recommended replacement.

View Company Reviews

Manufactured

By Optris

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Family

CT Series

Product Manual Product Specs

Features

Temperature ranges
- 212 to 1112°F (3MH)
- 302 to 1832°F (3MH1)
- 392 to 2732°F (3MH2)
- 482 to 3272°F (3MH3)
1ms response time
2.3μm spectral range
Optical resolution
- 100:1 (3MH)
- 300:1 (3MH1-3MH3)
0.1 to 1.1 emissivity
100mA max current draw
8 to 36VDC power supply
IP65 NEMA-4 front mountable
- At vacuum processes up to 10–3mbar

Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

Mounting nut
3m head cable
Electronic box with LCD display
Programming keys
Manual

The Optris CT XL 3M infrared thermometer has an integrated filter to block against laser radiation for measuring the temperature of laser processing applications such as laser welding of metals and plastics or in laser soldering. The quick 1ms response time allows very fast processes to be monitored. The short 2.3μm spectral range reduces errors when taking measurements on materials with unknown emissivity. The CT XL 3M is available in temperature ranges from 212 to 3272°F and can function in temperatures up to 185°F without additional cooling.

Selectable analog outputs and multiple digital interfaces offer high variability. The CT XL 3M features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis, all field configurable with the USB programming kit (ACCTUSBK). Field selectable analog output options include: 0/4-20mA, 0-5 and 0-10 V, type K or J thermocouples, and alarm. Optional USB, RS485, RS232 interface, 2 optically isolated relay outputs, CAN-Bus, Profibus DP, and Ethernet available with plug in options.

The Optris Compact Connect temperature analysis software is available as a free download, and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

$0.00

Accessories

Please consider these optional accessories.

Optris ACCTXLAB Mounting Bracket

Stainless steel, adjustable in two axis for CT XL 3M.

$105.00

Optris ACCTXLAP Air Purge Collar

Stainless steel with G 1/8in thread & 6x8mm hose connection for CT XL 3M.

$120.00

Optris ACCTXLRM Furnace Wall Mount

Includes mounting adapter, 300mm sighting tube & M48 x 1.5 pipe adapter for CT XL 3M .

$410.00

Optris ACCTXLTA Thread Adapter

M48x1.5 external, M30x1 internal, for CT XL 3M.

$42.00

Optris CT Series Digital Interface

Relay, RS485, RS232, USB, RS485/422, Modbus RTU, CAN-Bus & Profibus-DPv1 interfaces.

Starting at $65.00

Optris ACCTRAIL Rail Mount Adapter

Mounts CT electronics on a DIN rail.

$26.00

Optris ACCTCOV Closed Cover

For CxL, CxV, CT XL & CTratio electronic box.

$26.00

Optris ACCTXLHTCERT Calibration Certificate

Certificate of calibration with 3 reference temperatures for CT XL 3M.

$195.00

Optris ACCTIAC IR App Connector

USB cable and adapters for USB-C and USB-A, compatible with IRmobile (Android) and CompactConnect (Windows), for use with Optris CT and CTL models (except 4M).

$85.00
