Starting at $1,015.00
  • Usually ships in 16-18 weeks



  • 32 to 1310°F temperature range
  • 7.9µm spectral range
  • 150ms response time
  • 45:1 optical resolution
  • 0.1 to 1.1 emissivity
  • Universal analog output
  • 160mA max current draw
  • 8 to 36VDC power supply
  • IP65 NEMA-4 rated
Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

  • Mounting nut
  • Electronic box with LCD display
  • Programming keys
  • Manual

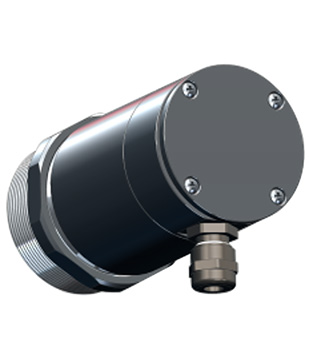

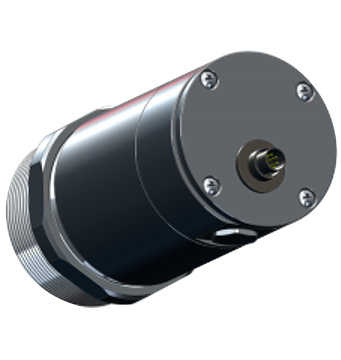

The Optris CTlaser P7 infrared sensor has a 7.9µm spectral range for measuring temperatures during the production of thin plastic materials such as foils made of polyurethane, polyether sulfone, polyethylene terephthalate, Teflon, or cellulose triacetate. It is also ideal for precise temperature measurements on glass surfaces. Its dual laser aim marks the exact spot location and size from 1.6mm at any distance. The CTlaser P7 has a temperature range of 32 to 1310°F and can function in temperatures up to 185°F without additional cooling.

Selectable analog outputs and multiple digital interfaces offer high variability. The CTlaser P7 features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis, all field configurable with the USB programming kit (ACCTUSBK). Field selectable analog output options include: 0/4-20mA, 0-5 and 0-10 V, type K or J thermocouples, and alarm. Optional USB, RS485, RS232 interface, 2 optically isolated relay outputs, CAN-Bus, Profibus DP, and Ethernet available with plug-in options.

The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.





Please consider these optional accessories.
