  1. Power Quality Analyzers

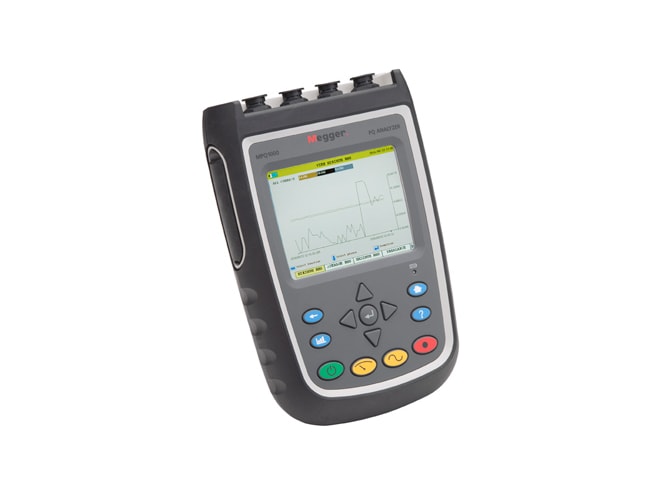

Megger MPQ1000 Power Quality Analyzer

Eight channel three phase handheld PQ Analyzer, automatic CT recognition and connection verification, 1000VAC/VDC range .

Megger MPQ1000 Power Quality Analyzer
Megger MPQ1000 Power Quality Analyzer
  • Megger MPQ1000 Power Quality Analyzer
    Megger MPQ1000 Power Quality Analyzer
  • Megger MPQ1000 Power Quality Analyzer Product Video
    Megger MPQ1000 Power Quality Analyzer Product Video
  • Megger MPQ1000 Power Quality Analyzer Basic Setup Video
    Megger MPQ1000 Power Quality Analyzer Basic Setup Video
  • Megger MPQ1000 Power Quality Analyzer Running a Test Product Video
    Megger MPQ1000 Power Quality Analyzer Running a Test Product Video
  • Megger MPQ1000 Power Quality Analyzer Configuration Verification Video
    Megger MPQ1000 Power Quality Analyzer Configuration Verification Video
Megger MPQ1000 Power Quality Analyzer
Megger MPQ1000 Power Quality Analyzer
Retired products cannot be ordered
Please call Instrumart for a recommended replacement

View Company Reviewsby Trustpilot
Manufactured
  • By Megger
Includes
  • FREE Ground Shipping
  • FREE Lifetime Tech Support
Product Manual Product Specs
Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Trustpilot

Overview

Features

  • 4 voltage channels
  • Voltage specs:
    • 4 voltage channels
    • range: 0 to 1000 VAC / 0 to 1000 VDC
    • 0.1% accuracy
  • Current channels:
    • 4 current channels
    • 0 to 6000 A (CT dependent)
    • 0.1% accuracy
  • 256 samples per cycle RMS
  • Automatic CT recognition
  • Automatic connection verification
  • On-board data analysis
  • IP54 enclosure

What's in the Box

  • Voltage lead kit
  • 32GB SD card
  • USB memory stick
  • USB communications cable
  • Ethernet communications cable
  • Soft sided case
  • Universal 24VDC power adapter
  • Battery pack

Description

The Megger MPQ1000 Power Quality Analyzer is an advanced handheld 3-phase analyzer. It is a highly intuitive analyzer that delivers unmatched capability in a smart ergonomic platform. View RMS data, waveforms, demand data, phase angles, harmonics, unbalance, flicker and more in real time with the MPQ1000 scope mode and DVM mode. When data needs to be recorded the MPQ1000 record verification will automatically identify the current clamps, recognize their range and verify the unit is connected properly. Simply connect it and push the record button. The MPQ1000 can record for extended periods of time because of its massive memory. It utilizes an SD card, which makes expanding the memory as easy as installing a new SD card. The recorded data can be viewed on the MPQ1000 color VGA display or the data can be transferred to the high power Megger PQ Power Quality Analysis software via USB cable, USB stick, Ethernet or directly from the SD card.

Applications for the MPQ1000 include:

  • Compliance testing to any PQ standard
  • Power factor studies
  • Load studies and load balancing
  • Billing verification
  • Substation monitoring
  • Capacitor bank sizing
  • Transformer analysis and de-rating
  • Motor troubleshooting and inrush testing
  • Switchgear and component failure
  • Tripping breakers
  • Equipment tripping offline
  • Dimming/surging lighting
  • Lamp flicker analysis
  • Neutral overheating
  • Solar (PV) analysis

Documents

Spec Sheets

  • Megger MPQ1000 Power Quality Analyzer Datasheet PDF (994 KB)

Manuals

  • Megger MPQ1000 Power Quality Analyzer Manual PDF (1.7 MB)

Other

  • Megger MPQ1000 Power Quality Analyzer Quick Start Guide PDF (3.6 MB)

Links

  • All possible part numbers

Accessories

Cables

Megger CA-USB Communications Cable
Megger CA-USB Communications Cable

USB Communications Cable.

$17.00
Megger 36798 Ethernet Communications Cable
Megger 36798 Ethernet Communications Cable

Ethernet Communications Cable.

$17.00

Accessories

Please consider these optional accessories.

Megger MCCV6000 Current Clamps
Megger MCCV6000 Current Clamps

Rain tight flexible current clamps for the MPQ and PA9 series.

Starting at $630.00
Megger Split Core Current Clamps
Megger Split Core Current Clamps

Split core current clamp for the MPQ and PA9 series, self identifying, supports 5/20/100/1000A ranges.

Starting at $535.00
Megger Hall Effect Current Clamp
Megger Hall Effect Current Clamp

Hall effect current clamp for the MPQ and PA9 series.

Starting at $1,225.00
Megger Unfused Voltage Leads
Megger Unfused Voltage Leads

Set of unfused voltage leads for the MPQ1000 analyzer. Includes, clips, lead color markers and ground cable.

$465.00
Megger 1008-645 Adapter Fuse Kit
Megger 1008-645 Adapter Fuse Kit

Kit consists of three 90017‐088 adapters and three 90020‐560 Fuses (0.8 Amp).

$205.00
Megger 90011-992 Universal Power Adapter
Megger 90011-992 Universal Power Adapter

24Vdc power adapter, Multiple interchangeable international plug adapters.

$139.00
Megger 90023-619 32G SD Card
Megger 90023-619 32G SD Card

32G SD Card for MPQ Analyzer.

$107.00
Megger 1008-756 Kit of 4 Plunger Clips
Megger 1008-756 Kit of 4 Plunger Clips

Kit of 4 Plunger Clips.

$190.00
Megger 2009-205 Hanging Strap
Megger 2009-205 Hanging Strap

Strap for hanging the analyzer.

$39.00
