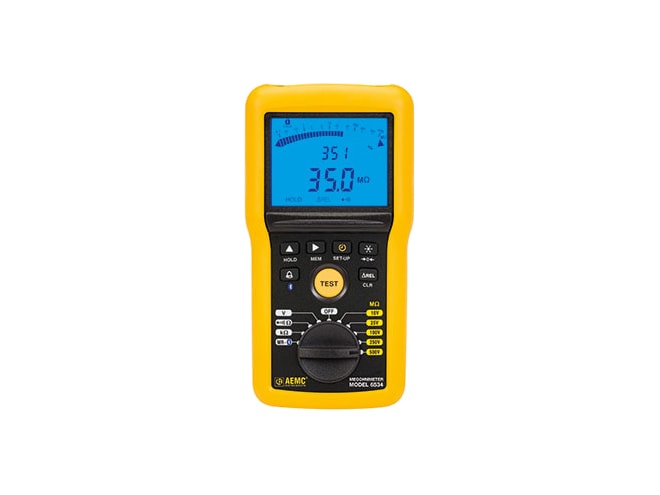

The Megohmmeter Model 6534 is a handheld, battery powered, multi-function 500V digital insulation resistance tester. It
is designed to measure insulation resistance, continuity, resistance and voltage. With a safety rating of 600V CAT IV and
IP54, the Model 6534 performs insulation resistance at 10, 25, 100, 250 and 500V measuring insulation values up to 50GΩ.
Meter also incorporates a 700V AC & DC True RMS voltmeter and continuity testing with a selectable 20mA or 200mA test
current. The Model 6534 includes a Timer and Lock function which allows the user to operate the unit hands free. Automatic
safety check protects user and meter with audiovisual signals and test inhibition when >25V is present on test sample. Alarms
function is also standard. Large digital/analog multi-function display provides clear and easy readings enhanced by a bright
blue electroluminescent backlight. A magnetic stand holds the meter to a metal surface or cabinet during the test. Optional
Remote Test Probe accessory with flashlight simplifies repetitive testing and helps access hard-to-reach, poorly lit, test
areas. With the possibility to save up to 1300 tests in memory and Bluetooth communication with DataView software, the Model
6534 will work well in electronics applications and production environments where a wide range of voltages, up to 500V, are
desired.
