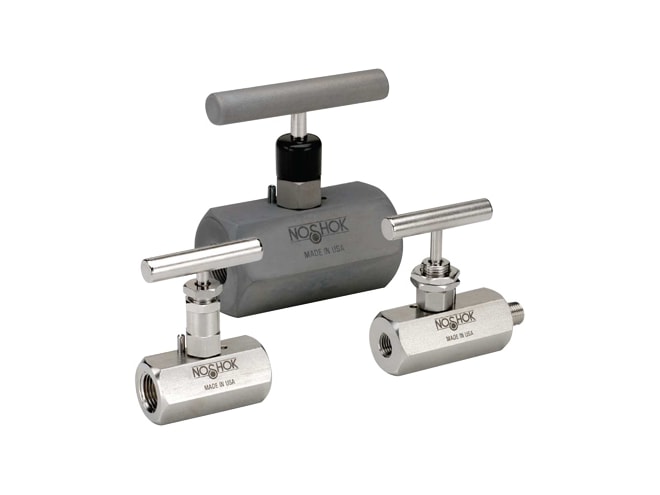

NoShok 400 Series Needle Valve
100% helium leak tested, 10k pressure rated, Blow-out proof stem, 1/4" NPT up to 1 1/2" NPT connection options
Need Help? Call a Calibration Engineer 1-800-884-4967
We're open 8:00am to 5:00pm ET
Mike K.
Manager of Outside Sales
8 years at Instrumart
Mark D.
Applications Engineer
8 years at Instrumart
Mike C.
Cal & Pressure Engineering Lead
19 years at Instrumart
Shawn S.
Senior Applications Engineer
24 years at Instrumart
John A.
Applications Engineer
13 years at Instrumart
Angelo S.
Applications Engineer
Features
- 100% helium leak tested to 1 x 10-4 ml/s
- 10,000 psi pressure rating
- Blow-out proof stem
- FKM o-ring seal and PTFE back-up ring
- 316 stainless steel stems
- 1/4" NPT up to 1 1/2" NPT connection options
- Slotted spring pin
- Vinyl dust cap
The NoShok 400 Series Needle Valve is 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability. The blow-out proof stem provides a secondary stem seal in the full open position. The 400 Series has a 10,000 psi pressure rating at 200°F. The FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Grafoil packing optional (certain NPT sizes only). All stem threads are rolled for strength and ease of operation.
Applications
This product can be used in the following applications:
