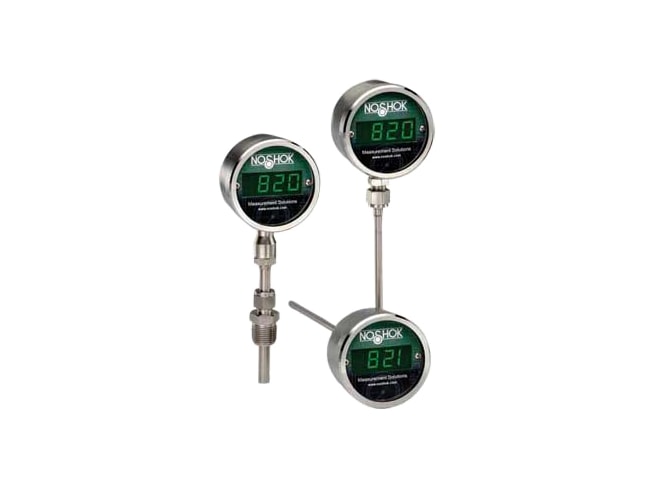

NoShok 820 / 821 Series Temperature Indicator
PT100Ω RTD Class A element for temperature sensing with large 4-digit LED display
Need Help? Call a Calibration Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
Shawn S.
Senior Applications Engineer
24 years at Instrumart
Mark D.
Applications Engineer
8 years at Instrumart
Mike K.
Manager of Outside Sales
8 years at Instrumart
John A.
Applications Engineer
13 years at Instrumart
Features
- Temperature ranges from -50 to 400°F (-45 to 204°C)
- ≤0.22% FS accuracy (≤0.1% FS optional)
- All 316 stainless steel construction
- Field re-programmable
- 4 to 20mA programmable linearized output signal
- Self-calibration
- IP 65 / NEMA 4 rated environmental protection
The NoShok 820 / 821 Series Temperature Indicator is field re-programmable with optional PC interface module and software. The software includes a security feature to prevent accidental re-programming. It also utilizes a self-calibration feature for accurate and stable performance.
Applications for the 820 / 821 Series include:
- Replacement for bimetal, liquid bulb and glass thermometers
- Pharmaceutical
- Food preparation
- Utilities and municipal refineries
- Chemical and petrochemical plants
- Paper mills
- Hydraulics
Applications
This product can be used in the following applications:
