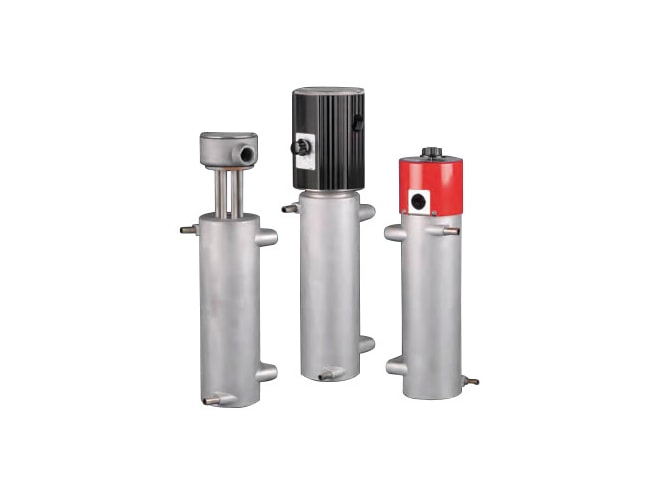

CAS CAST-X 2000 Circulation Heaters
Starting at $1,495.00

Not in stock. Usually ships in 8-14 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET


  • Fluid path constructed independent from heater sheath to prevent fluid contamination and ensure safety
  • Compatible with high pressure applications
  • Robust cast-in aluminum construction for longer heater life
  • Non-welded construction minimizes potential leakage
  • Power from 1 kW to 3 kW
  • Standoff housings available (for higher temperatures)
  • Process temperatures to 662°F (350°C) with standoff, otherwise 482°F (250°C)
  • Max Pressure: 4300 psi (295 bar)
  • Integrated thermostat and enclosure
  • Over-temperature snap action switch
  • Self-draining construction reduces material degradation caused by trapped material
  • NEMA 1 or NEMA 4 or NEMA 7 housing options
  • K or J Type thermocouples standard
  • Long-lifespan, low-maintenance design

The CAS CAST-X 2000 circulation heater is an ideal heating solution for demanding applications. The CAST-X 2000 heater consists of a helical coiled tube cast into an aluminum body with tubular elements. The aluminum body serves as the heat transfer media between the tubular element and the coiled tube through which the fluid being heated passes through. The unique construction of the heater allows it to be used where thermally sensitive materials are being heated such as paints, resins and flammable materials such as fuels and solvents. The aluminum mass acts as a "thermal flywheel" and ensures accurate temperature control of the fluid to prevent degradation. The CAST-X 2000 is available with optional explosion proof enclosure for use in flammable environments.

The CAST-X 2000 is well suited to applications where fluid cleanliness is critical because the material being heated never comes in contact with the heating elements. This is a performance requirement in the food service equipment, semiconductor and analytical markets. The CAST-X 2000 heater comes with a heavy wall seamless stainless steel passageway that assures performance in high-pressure applications where viscous or mildly corrosive materials need to be heated.
