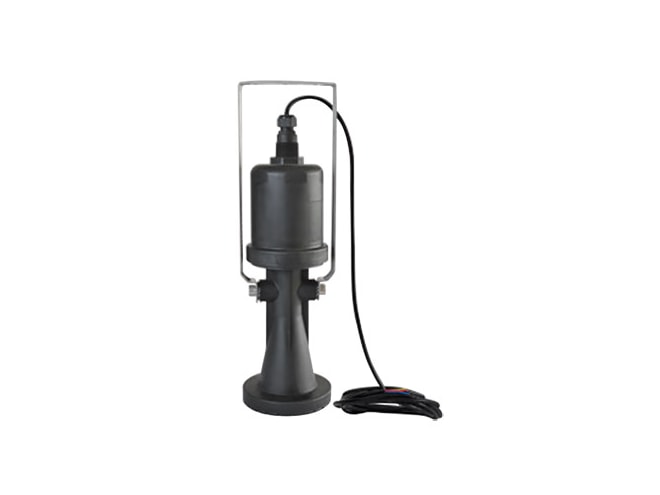

Flowline EchoPulse LR30 Radar Level Transmitter



Not in stock. Call for availability [?]

Need Help? Call a Flow Engineer 1-800-884-4967

We're open 8:00am to 5:30pm ET

Application questionnaire must be completed before ordering.


  • 12in to 98.4ft (30cm to 30m)
  • ±3mm accuracy
  • Process temp: -40 to 212°F (-40 to 100°C)
  • Remote push button display module
  • Process mount: 304 bracket or 1" NPT
  • IP68 sensor enclosure
  • 316 L mounting bracket
  • Integral display
  • 26 GHz pulse radar is unaffected by sump process conditions

The Flowline LR30 EchoPulse Pulse Radar Level Transmitter provides continuous liquid level measurement up to 98.4 feet (30m) with a 4-20 mA signal output, and is configured via its remote push button display module. The non-contact liquid level sensor is intended for industrial wastewater, municipal storm or sewer lift station, reservoir, river, canal or flume applications located below or above grade. Select this sensor for challenging application conditions that may include light surface foam or agitation, small trash or plant material, wind, condensation or vapor. Each comes with a 32.8 foot (10m) cable, mounting bracket and display module. The sensor is intended for bracket mount or conduit mount installation suspended above the liquid level.
