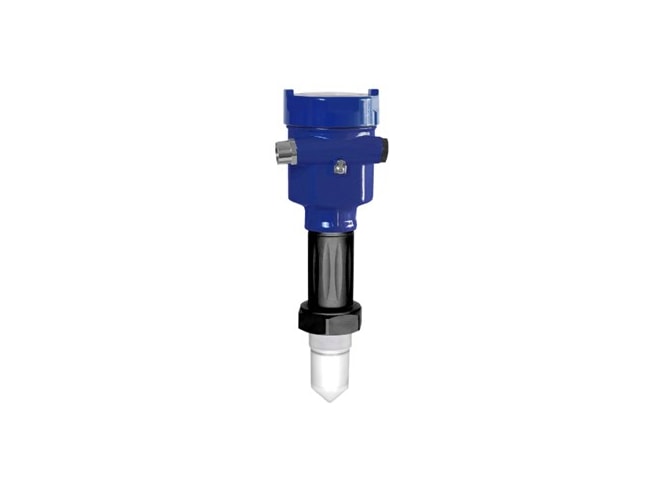

Flowline EchoPulse LR10 Radar Level Transmitter

Continuous liquid level measurement up to 32.8ft (10m) with a 4-20 mA signal output, 1.5in NPT process mount.

$1,700.00

View Company Reviews
Part Number
  • LR10-0010
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • 12in to 32.8ft (30cm to 10m)
    • ±5mm accuracy
  • -40 to 266°F (-40 to 130°C) process temperature
  • -14.5 to 43.5 psi (-1 to 3 bar) pressure rating
  • 26GHz pulse radar, unaffected by vapor & condensation
  • PTFE encapsulated antenna & process mount
  • 12in (30cm) dead band for utilization of the entire tank
  • Integral display
  • Not for use with non-metallic tanks (FCC regulation)
    • Use the LR15 for non-metallic tanks
A Flowline Radar Level Application Questionaire must be completed before ordering.

The Flowline EchoPulse LR10 Pulse Radar Level Transmitter provides continuous level measurement up to 32.8ft (10m) with a 4-20 mA signal output, and is configured via its integral push button display module. The non-contact liquid level sensor is intended for chemical or water storage applications in above grade metal or reinforced concrete tanks or below grade tanks of any material. Select this sensor for easy application conditions with corrosive media, light agitation, condensation or vapor, and installation in a low-profile tank adapter or flange fitting.
