AccuMac AM1210 Type S Thermocouple

Reference standard platinum & platinum-rhodium alloy thermocouple with an alumina sheath for 32 to 2372°F.

Starting at $4,980.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • 32 to 2372°F (0 to 1300°C) temp range
  • ±0.2°C (@1084.62°C) short term stability
  • ±0.6°C (@1084.62°C) long term drift
    • After 1 year typical usage
  • 300mm or 500mm length & 6mm diameter probe
  • Type S: Platinum/10% rhodium vs platinum

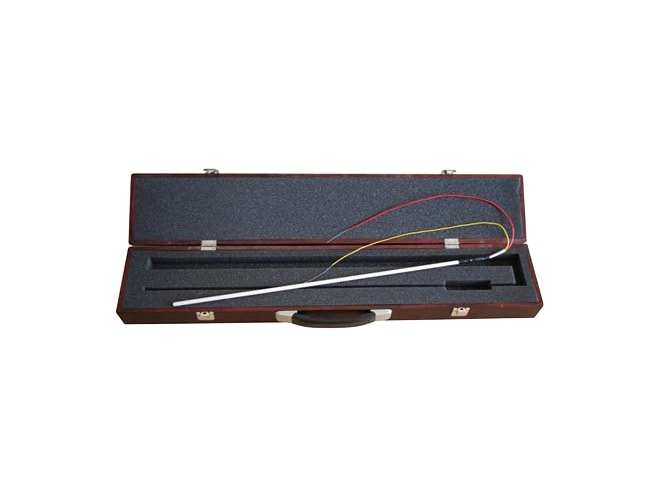

  • Includes protective wooden case with foam inserts

The AccuMac AM1210 Type S thermocouple is made from reference grade platinum and platinum-rhodium alloy. It covers a temperature range of 0 to 1300°C with short term stability of 0.2°C all the way to the freezing point of copper (1084.62°C). It is commonly used as reference standard to calibrate industrial thermocouples. All thermocouple wires and parts are specially cleaned and annealed before assembly. Once assembled, every AM1210 thermocouple is fully annealed and tested again to meet the tolerance criteria as specified in the datasheet.
