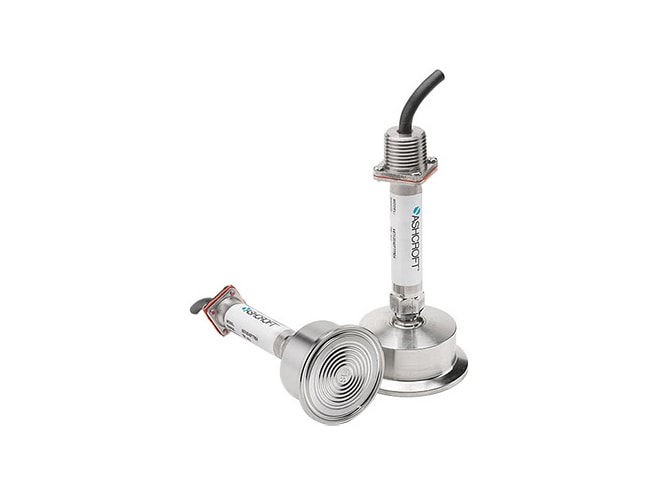

Ashcroft KS Pressure Transmitter

Sanitary pressure transducer with ranges from vacuum to 1000psi.

Starting at $640.46

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6 weeks
Product Manual Product Specs

Features

  • Dairy, food, pharmaceutical & 3A sanitary applications
  • 316L stainless steel diaphragm
    • electropolished tri-clamp style
  • Stainless steel NEMA 4X enclosure
  • All welded design
  • ±1% span accuracy
  • Meets the 3A Sanitary Standard 74-02

The Ashcroft KS pressure transmitter combines proven thin film technology with diaphragm seal expertise. All-welded stainless steel construction meets the 3A Sanitary Standard, satisfying requirements to ensure process integrity. This model is an ideal choice when stringent process monitoring and control is required.

Modern chemical vapor disposition methods provide simple, stable, molecular bonds between a proven metal diaphragm and polysilicon strain gauge bridge. There are no epoxies or bonding agents to contribute to signal instability or drift. The integral metal diaphragm and polysilicon bridge are virtually unaffected by shock, vibration, or mounting position.
