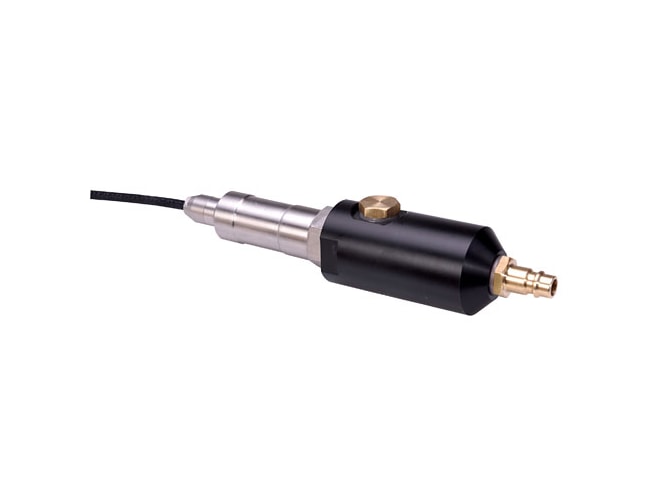

Rotronic HC2-LDP Low Dew Point Probe
Starting at $1,675.00

Usually ships in 3-4 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:00pm ET

Features

  • Reliable measurement of Trace Moisture
  • Temp measuring range: -40 to 185°F (-40 to 85°C)
  • Dewpoint measuring range: -94 to 185°F (-70 to 85°C)
  • Accuracy: ±0.2 K
  • Up to 100 (1500 psi) bar with LDP-MCS chamber
  • HYGROMER LDP-1 sensor element
  • Trace moisture monitoring at low limits

The Rotronic HC2-LDP Low Dew Point Probe comes with the latest AirChip4000 technology. Calculates a measurement from the average of 8,000 single points within a 2 second interval and, together with the HYGROMER® LDP-1 dew point sensor, delivers measurements of the highest quality.

The low dew point probe can be used in compressed air systems, refrigeration dryers and adsorption dryers. ROTRONIC offers the probe with ATEX certificate for environments with ATEX requirements. Please refer to to the ATEX data sheet for more detailed information.

Suitable measurement chambers with a defined air flow rate and a quick connector for optimum dew point measurement are available in POM and stainless steel. The base unit can be used for customization.

Rotronic LDP-MCP / LDP-MCS Measurement Cell Body
LDP measurement cell body, POM or stainless steel models
$130.00
Rotronic LDP-FCPB1 / LDP-FCSB1 Flow Cell
Flow cell with fix valve, POM or stainless steel body, brass body, 1 liter/min @ 8 bar
$310.00
Rotronic SP-S15 Filters
Sintered steel, 50um
$25.00
Rotronic AC4001-B1 Fix Valve
Fix valve, Brass, 1 lt./min., inkl. sealing ring
$265.00
Rotronic AC4002-B Inlet Coupling
Inlet coupling, Brass, inkl. sealing ring
$15.00
Rotronic AC4003(5) Sealing Ring
Set of 5 sealing ring for LDP probes
$5.00
