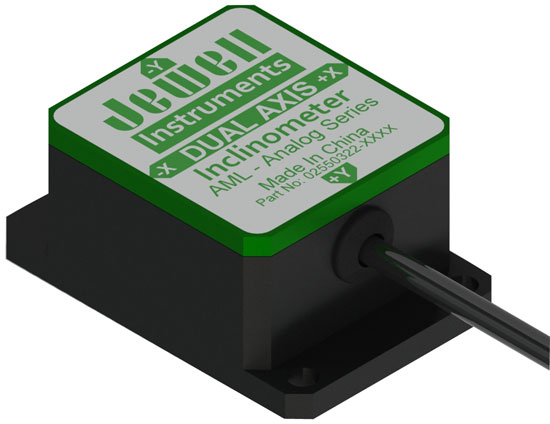

Jewell Instruments AML Series Inclinometers
Low-cost analog single or dual-axis inclinometer with MEMS capacitive sensor technology for industrial applications
Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET
- Single and dual-axis available
- Measurement ranges from ±10° to ±90°
- Resolution to 0.05°
- Bias temperature coefficient: ±0.01°/°C
- Analog 0-5V and 4-20mA output options
- -40° to +85°C operating range
- High shock & vibration tolerance
- IP67 rated enclosure
- 1m Cable (standard)
Jewell Instruments AML series inclinometers are low-cost single or dual-axis analog instruments for industrial applications. Incorporating temperature compensated, micro-machined MEMS capacitive technology, AML series inclinometers are an excellent choice for a range of applications including: solar tracking & panel positioning, vehicle wheel alignment, industrial automation & control, radar/antenna mast alignment, platform leveling, navigation pitch/roll measurement.
AML series inclinometers are available in ±10˚, ±30˚, ±60˚ or ±90˚ ranges with all ranges having a resolution to 0.05°. Excellent for long term stability, the AML series features a bias temperature coefficient of just ±0.01°/°C. Either 0-5V or 4-20mA analog output options are available. The instruments are designed with a high tolerance to shock and vibration and utilize 9 to 36 VDC input voltage. All AML series inclinometers are rated IP67 waterproof up to 1m.
