Amprobe AMP-320 TRMS Clamp Meter
$219.95

Not in stock. Usually ships in 2-3 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:00pm ET

Features

  • True-RMS
  • Measuring ranges:
    • Voltage up to 600 V AC/DC
    • AC/DC current up to 600A
    • Frequency 5 to 999 Hz
    • Resistance 0 to 60 kΩ
    • Capacitance 0.0 to 2500 µF
  • Low pass filter
  • Amp-Tip function
  • Non-contact voltage detection (NCV)
  • Audible continuity and diode test
  • Data hold, relative zero, MAX/MIN/AVG mode
  • CAT III 600 V safety rating

What's in the Box

  • Tests leads
  • Carrying case
  • Alligator clip set
  • Banana plug K-type thermocouple
  • Two AAA batteries
  • User manual

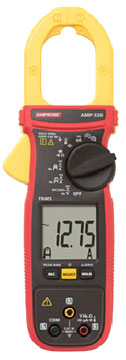

The Amprobe AMP-320 TRMS Clamp Meter is designed for HVAC, general electrical or motor testing applications, the AMP-320 Clamp Meter, with its large backlit display, has the features you need. HVAC technicians will find the temperature and capacitance measurements they need plus DC Microamps for testing flame sensors. It also had core motor testing capabilities such as motor rotation, 3-phase sequence testing, and inrush current measurement for motor start-up monitoring. The low pass filter allows you to accurately measure current and voltage on variable frequency drives. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. It also offers a full range of standard multimeter features, including AC/DC current, AC/DC voltage, frequency, True RMS, non-contact voltage detection, resistance, continuity and a CAT III 600 V safety rating.
