Michell Instruments XZR200 Oxygen Analyzer
Starting at $1,320.00

Some models in stock. View available part numbers.

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET


  • Measurement ranges:
    • 0-25% (standard)
    • 0-100%
  • Zirconium dioxide measurement technology
  • Accuracy:
    • 0-25%; 1% of reading <0.5% O2
    • 0-100%; <1% of reading
  • Configurable outputs:
    • 4-20 mA
    • 0 to 10 VDC
  • Output resolution: 0.01V, 0.01mA or 0.01% O2
  • Automatic or manual calibration
  • Diecast aluminium case IP65
  • Probe lengths: 8.27" or 15.75"
  • Supplied with mating connector
  • Sample temperature up to 752°F (400°C)

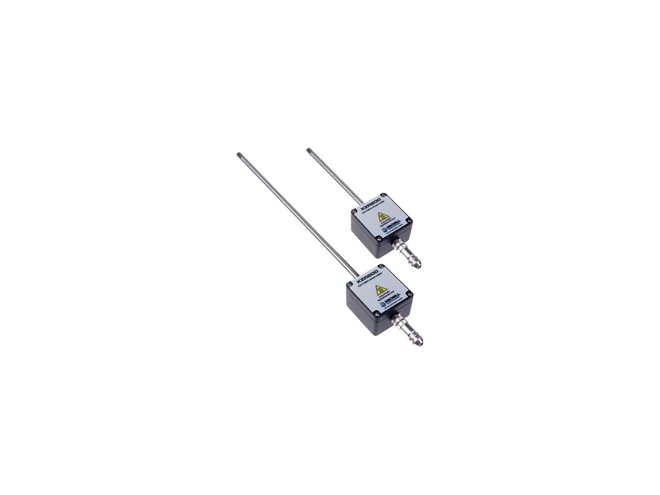

The Michell Instruments XZR200 Oxygen Analyzer is a cost effective zirconium-dioxide analyzer to measure percentage level oxygen in combustion processes, ambient air monitoring and many more applications. The unit is configurable to measure either 0-25% or 0-100% oxygen and offers manual or automatic calibration to suit the customer's needs. Two probe lengths are available (210mm & 400mm) as well as two maximum sample temperatures (250°C & 400°C) for greater flexibility.

Applications for the XZR200 include:

  • Combustion control including oil, gas and biomass boiler applications
  • Laboratory & building air quality monitoring including confined space personnel safety
  • Composting
  • Scientific including respiratory studies of a community or an organism, plants and animals
  • Food and beverage packaging
Michell Instruments XZR200 Adaptor
12mm tube to 1/2" NPT male stud, bored through to 12mm tube
In Stock
Michell Instruments Calibration Kit
Calibration kit without gas cylinder for XZR 200 and XZR400 oxygen analyzers and XZR500 combustion control analyzer
Part Number Price Available
Show Configuration
Base Price
Standard up to 482°F (250°C)
8.27" (210mm)
$1,320.00 1
Show Configuration
Base Price
High temperature up to 752°F 400°C (+$82.00)
8.27" (210mm)
$1,402.00 1

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
