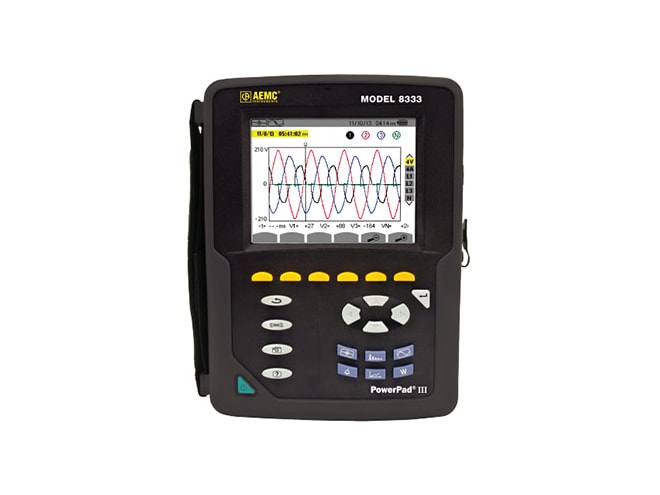

AEMC PowerPad III Model 8333 Power Quality Analyzers
True-RMS single-, two- and three-phase measurements at 256 samples per cycle, plus DC and harmonics.
Overview
Features
- 4 voltage and 3 current input terminals
- 2000V phase to phase
- 1000V phase to neutral
- Up to 500kV voltage ratio
- 1 to 50th harmonic measurement including direction
- 40 to 70Hz frequency
- Real-time color waveforms
- Captures up to 51 transients
- 2GB of memory for trend data
- 4000 alarm events
- IEC 61000-4-30 Class B
- Safety rated to 600V CAT IV
- 3 year warranty if registered within 30 days from purchase
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.
What's in the Box
- 4 Black 10ft voltage leads
- 4 Alligator clips
- 12 Color-coded input ID markers
- NiMH battery
- 110/240V Power adapter with US cord
- Carrying bag
- Soft pouch
- USB stick with user manual and DataView software
Description
The AEMC PowerPad III model 8333 power quality analyzers are easy-to-use, compact and shock resistant. The 8333 has memory available for storing trend data, alarms, transients, and snapshot data. The user can store up to 12 screen snapshots, up to 51 captured transients that contain four cycles for each active input, and 4,000 alarm events from up to 10 different parameters. Trend data can also be recorded for days, weeks or even months.
AEMC PowerPad III Model 8333 Power Quality Analyzers Applications
- Verification of power distribution circuits
- In-plant troubleshooting of power distribution panels and individual machinery
- Monitor pad mount transformers and phase unbalances
- Determine harmonic problems originating from source or load
- Determine transformer K-Factor
- Energy metering (kVAh, VARh, kWh)
