Dwyer MM-2 Multimeter

Compact, low cost digital auto-ranging multimeter with True RMS for general electrical testing and troubleshooting.

Call for pricing

View Company Reviews
Part Number
  • MM-2
Manufactured
Includes
Availability
  • Usually ships in 4-6 business days

Features

  • Rated CAT IV 600 V, CAT III 1000 V
  • DC Voltage: 0.1 mV to 1000 V; Accuracy: ±0.5% + 2 digits
  • AC Voltage: 0.1 mV to 750 V; Accuracy: ±1.3% + 5 digits
  • DC Current: 0.1 uA to 10 A; Accuracy: ±1.0% + 3 digits
  • AC Current: 0.1 uA to 10 A; Accuracy: ±1.5% + 5 digits
  • Resistance: 400, 4K, 40K, 400K, 4M, 40M; Accuracy: ±1.0% + 2 digits
  • Protection: 1000 Vrms
  • Audible continuity buzzer
  • Capacitance: 4n, 40n, 400n, 4u, 40u, 400u, 4m, 40mF; Accuracy: ±1% + 5 digits
  • Temperature: -40 to 1382°F (-40 to 800°C)
  • Frequency: 1 Hz to 40 MH
  • Backlit display with bargraph, 4000 counts plus decimal point
  • Sampling Rate: 2.5 times per second
  • 9V alkaline battery, user replaceable

What's in the Box

  • Black and red test leads
  • Carrying case with belt loop
  • 9V alkaline battery

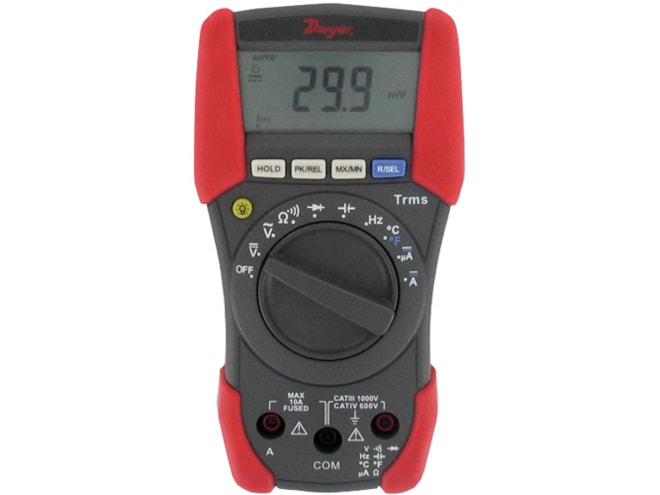

The Dwyer MM-2 multimeter is a compact, low cost digital auto-ranging instrument ideal for general electrical testing and troubleshooting. This full function, True RMS multimeter measures DC voltage to 1000 V and AC voltage to 750 V, DC and AC current to 10 A and resistance to 400 Ohms. In addition to volts, amps and ohms, this meter includes audible continuity, diode, LED and transistor hFE tests. The rotary switch allows you to select from any of the functions quickly and easily. The 4 digit backlit LCD features value, mode, and low battery indication. The rugged, high impact case is double injected for excellent strength and durability.

This product can be used in the following applications:
