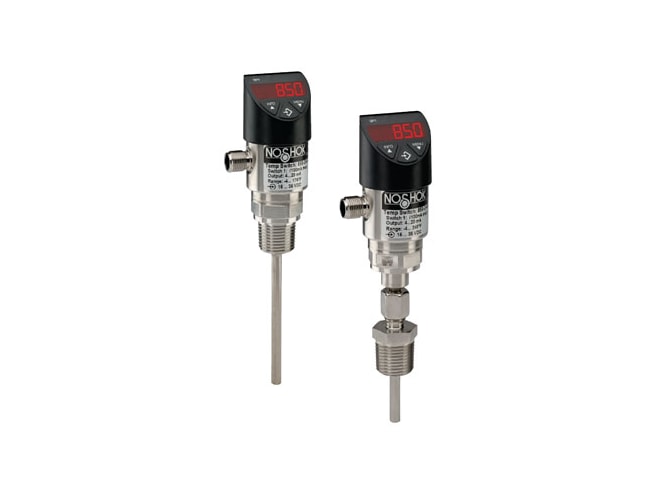

NOSHOK 850 Series Temperature Transmitters

Electronic indicating temperature transmitter / switch, PT100 technology to provide continuous temperature monitoring. Learn more...

Starting at $565.55

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Utilizes PT100 technology
  • Stem lengths up to 350mm
  • -4 to 176°F (-20 to 80°C) standard temp range
    • -4 to 248°F (-20 to 120°C) optional
  • One or two switching outputs
  • 316Ti Stainless steel wetted materials
  • Stainless steel housing material
  • +0.1% accuracy

The NOSHOK 850 Series Temperature Transmitters utilize PT100 technology to provide continuous temperature monitoring, electronic temperature switching, transmission of output signal, and providing local digital indication. The 850 allows for one or two switching outputs as well as an optional analog output. Two buttons on top allow simple adjustment of the temperature set points, reset points, switching functions and the measuring range of the optional analog output.

A variety of stem lengths are available for maximum versatility (also available with adjustable insertion lengths). The housing and replaceable measuring insert are screwed together to allow the exchange of the measuring insert without opening the connection to the process.

Applications include:

  • Mechanical engineering
  • Heating and cooling circuits
  • Air conditioning technology
  • Plant construction
  • Environmental technology

This product can be used in the following applications:

Manufacturer Stock

Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.

Part Number Price Available
850-1-48-4/248-2-150mm-6
Show Configuration
$736.98 1 in stock
850-2-48-4/248-2-150mm-6
Show Configuration
$802.53 1 in stock
850-5-8-4/176-3-100mm-6
Show Configuration
$664.18 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
