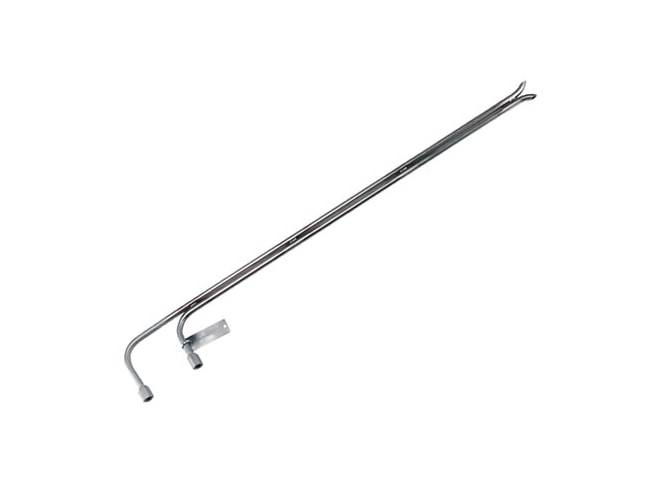

Dwyer 160S Series Pitot Tubes
Designed for flow measurement of dirty, particulate laden air or gas streams typical in smoke stack and other environmental testing
Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET
- Meets EPA specification 40 CFR (ch. 1)
- Long lasting, welded stainless steel construction
- 1/8" female NPT connections, permanently welded
- Maximum Temperature Rating: 1500°F (815°C)
- Maximum Pressure Rating: 100 psig (6.89 bar)
- 0.84 flow coefficient
Dwyer 160S series pitot tubes are designed specifically for flow measurement of dirty, particulate laden air or gas streams typical in smoke stack and other environmental testing. Large 5/16" diameter stainless steel tubing resists plugging under harsh, sooty conditions which quickly block conventional flow sensors. Total and static pressure tubes are precisely aligned and welded together every six inches for maximum accuracy, strength and long term durability. Versatile 1/8" female NPT connections easily adapt to any type of pipe or tubing. A pair of 1/8" NPT to 3/16" I.D. tubing adapters is included plus a handy molded vinyl cap to protect tip when not in use.
The Dwyer 160S pitot tube can be supplied with a permanent mounting configuration which includes include a 1-inch diameter welded stainless steel sleeve and adjustable compression fitting with 1-inch male NPT mounting threads. Adjust depth, lock in place.
