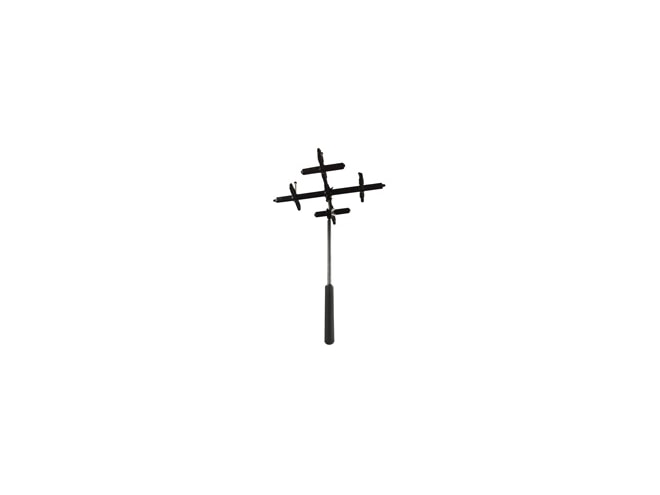

Dwyer 160G Air Flow Grid

Precision instrument uses 16 sensors to measure face air velocity on grills, diffusers, registers, exhaust hoods, coils, filters, and dampers .

Call for pricing

View Company Reviews
Part Number
  • 160G
Manufactured
Includes
Availability
  • Call for availability

Features

  • For use with air or compatible gases
  • Range: 1000 to 5000 FPM (5 to 25 m/s)
  • Accuracy: ±2% FS
  • K Factor: 0.84
  • Wetted Materials:
    • Grid: Black polycarbonate
    • Swivel: Carbon steel
    • Handle/bolts/wingnut: SS
    • Standoffs: Aluminum with rubber bumpers
  • Temperature Limits: -40 to 257°F (-40° to 125°C)
  • Process Connection: 1/8 to 1/4" ID tubing
  • RoHS compliant

The Model 160G Averaging Air Flow Grid is a precision sensing instrument used to measure face air velocity on grills, diffusers, registers, exhaust hoods, coils, filters, dampers and similar restrictions. With its 16 sensing points, the 160G Air Flow Grid provides an average flow sensing area across its 16.5" length and width. Included color coded tubing connects to the integral barbed fittings, providing a differential pressure signal to a gauge or manometer where the readings can be converted into a velocity or flow reading. The 160G comes standard with an 18" handle and two 17" extensions offering a maximum reach of approximately 52". The uniquely designed swivel and tightening nut allows the user to position the sensing grid at any angle for ease of use in hard to reach locations.
