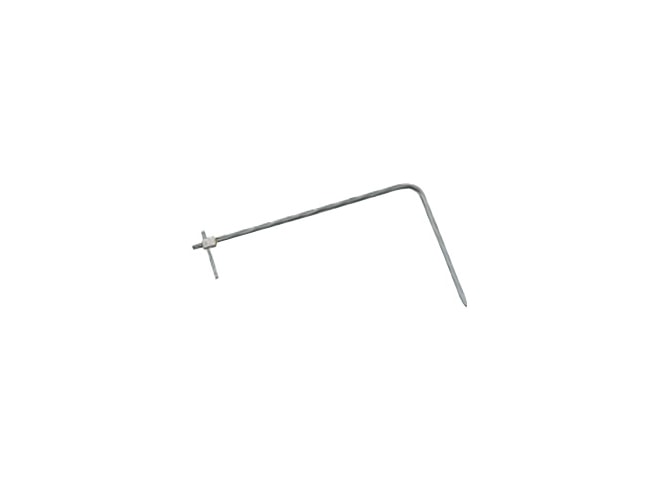

Dwyer 160E Series Pitot Tubes
Starting at $146.00

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:00pm ET

Features

  • Ellipsoidal tip design for improved accuracy, 1.0 coefficient
  • 304 stainless steel construction adds strength, resists corrosion
  • Adjustable depth indicators for fast, consistent traverses
  • Alignment indicator helps keep tip parallel to flow

Dwyer 160E series pitot tubes are widely used in the U.K. and Europe for applications demanding high accuracy when measuring the flow of air or other compatible gases. Precision crafted tip configuration allows air to pass smoothly with minimum turbulence for consistent, reliable readings. Exterior indicator arm is aligned parallel to the 5 in. (13 cm) sensing tip so you always know that unit is properly positioned inside duct. Sliding depth indicators grip firmly to ensure uniform insertion - critical when making multiple measurements as part of a complete traverse; the best way to determine average velocity. Total and static pressure taps are 1/4" (6 mm), permanently silver soldered to the connection block, leak-proof and durable.

Dwyer A-156 Mounting Plate
Flange mounting plate with 1/2" female NPT
$16.25
Dwyer A-158 Split Flange
Split mounting flange for use with pitot tubes and probe assemblies
$13.75
Dwyer A-159 Mounting Gland
Mounting gland with 1/2" male NPT
$28.00
