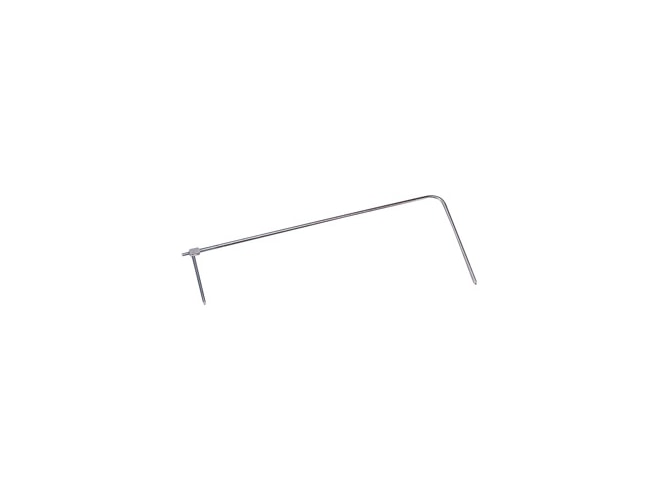

Dwyer 160 Series Pitot Tubes
Starting at $74.00

Usually ships in 4-6 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • No calibration needed
  • Precisely located, burr-free static pressure holes
  • Hemispherical tip design, best for accuracy if imperfectly aligned and nearly impossible to damage
  • Long lasting 304 SS construction
  • Silver soldered connections for leak-proof operation
  • Coefficient of “1”
  • 5/16˝ models rated to 1500°F
  • Extended static connection helps guide tip within recommended 15° of air flow direction
  • Inch graduations on sides of 160 series to quickly determine exact insertion depth
  • Dwyer Air Velocity Calculator, direct reading flow charts and instructions included
  • Use 1/8˝ models in ducts as small as 4˝, 5/16˝ models in ducts 10˝ or larger
  • Optional mounting gland or split flange make permanent installation fast and simple

Dwyer 160 series pitot tubes are constructed from corrosion resistant stainless steel for a lifetime of service. Ideal for use with precision manometers and air velocity gauges, 160 series pitot tubes feature ASME design to meet AMCA and ASHRAE specifications for maximum accuracy over a wide variety of flow conditions. No correction factors required as ASHRAE tip design yields a calibration factor of 1. ASHRAE design needs no calibration! Permanent, stamped insertion depth graduations on sides of 160 series facilitate accurate positioning. Static pressure port is parallel to sensing tube allowing quick, easy alignment of tube with air flow. Low sensitivity to misalignment gives accurate reading even when tube is misaligned up to 15 degrees. Various standard sizes are available for use in ducts as small as 4" in diameter or as large as a 36 ft. diameter. A universal model fits user supplied 3/4" schedule 40 (standard) pipe in any length. Several convenient mounting options are available for permanent installations.

Dwyer A-156 Mounting Plate
Flange mounting plate with 1/2" female NPT
$16.25
Dwyer A-158 Split Flange
Split mounting flange for use with pitot tubes and probe assemblies
$13.75
Dwyer A-159 Mounting Gland
Mounting gland with 1/2" male NPT
$28.00
