Starting at $1,407.00

Not in stock. Call for availability [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Hose 4/6 mm or 1/8" NPT pressure3 connections
  • Up to 0.05% accuracy
  • Temperature limits: 32 to 122°F (0 to 50°C)
  • Humidity: Maximum 95% RH non-condensing
  • Graphical Back Lit LCD, 128 x 64 points
  • Uses (3) 1.5 V AA alkaline batteries. Can operate on 6 to 9 VDC external power
  • Data logs up to 10,742 readings. Recording intervals adjustable from 1 second to 24 hours or manual
  • IP54 rated enclosure
  • CE approved

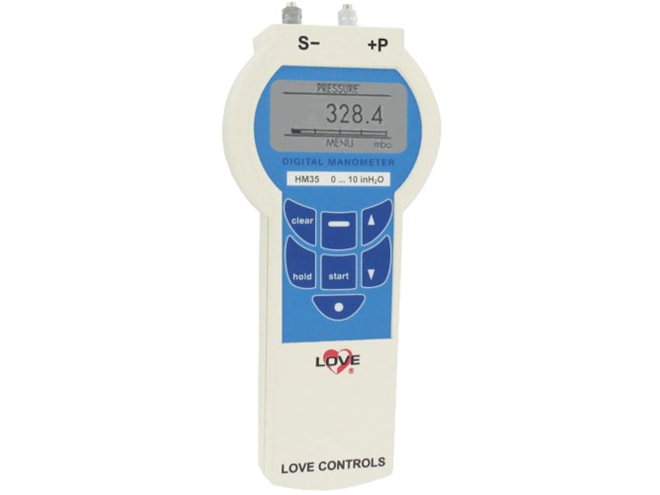

The Love Controls HM35 Digital Manometer is a high precision instrument designed to reliably measure and log pressure measurements for critical applications. This family of manometer can measure absolute pressure, differential pressure or gauge pressure with up to 0.05% accuracy. The data logging function can store up to 10,742 readings and transmit the readings to a PC through an IR serial port. The large display can graphically display trends in the data as well as peaks and valleys. The series HM35 comes standard with a calibration certificate so that the instrument can be used as a secondary calibration standard when testing other pressure instrumentation. This manometer is ideal for laboratories, calibration facilities, and other critical pressure applications.

Love Controls HM28-0 Adapter
1/8" NPT adaptor
$55.50
Love Controls HM35-2 Serial Adapter
Infrared RS232 serial adapter for Love Controls HM35 manometer
$242.00
Love Controls HM35-3 Power Adapter
Universal power adapter for Love Controls HM35 manometer
$156.00
Love Controls HM35-PK Gas Pressure Maintenance Kit
Gas pressure maintenance kit for Love Controls HM35 manometer
$1,126.00
Love Controls HM35-VK Vacuum Pressure Maintenance Kit
Vacuum pressure maintenance kit for Love Controls HM35 manometer
$1,126.00

Applications

This product can be used in the following applications:
