Starting at $516.00

Not in stock. Usually ships in 4-6 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Air and non-combustible, compatible gases
  • Ranges: 0.25 up to 100 inH2O
  • ±0.5% accuracy
  • NEMA 4 (IP66) housing
  • 4 digit backlit LCD 0.6" display
  • Square root output for flow
  • Aluminum, glass housing materials
  • 1/8" female NPT process connection
  • Modbus RTU, RS485, 9600 baud communications
  • CE and UL agency approvals

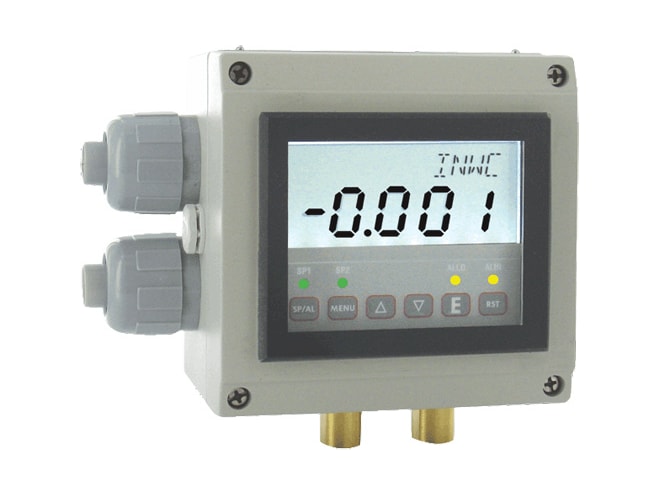

The Dwyer Digihelic II Differential Pressure Controller combines the 2 SPDT control relays, 4-20 mA process output and Modbus communications with a large, brightly backlit 4 digit LCD display that can easily be seen from long distances. The electrical wiring has also been enhanced in the DHII with its detachable terminal blocks. The removable terminals allow the installer to easily wire the terminal block outside the housing and then attach to the circuit board, reducing wiring difficulties and installation time in the process.

The Digihelic II Differential Pressure Control in the new NEMA 4 (IP66) enclosure enables this product to be the perfect choice when mounting pressure controls outdoors in such applications as rooftop air handlers. This housing also makes it the ideal solution for surface mounting in clean rooms or facilities where water or a cleaning solution is utilized in maintaining plant cleanliness.

Software

Dwyer DIGIHELIC LINKS Communication Software CD
DIGIHELIC LINKS Communication Software CD
$51.50

Mounting Bracket

Dwyer A-438 Mounting Bracket
Surface mounting bracket for Dwyer ISDP pressure transmitters
$12.50

Accessories

Please consider these optional accessories.

Dwyer MN-1 Mini-Node RS-485 to USB converter
Mini-Node RS-485 to USB converter
$77.50
