Overview

Features

  • Intuitive handset controls enable users to select wide-angle 180-degree or 90-degree viewing angles with a simple press of the switch
  • 640 × 480 pixel resolution
  • Frame rate: 30 fps (NTSC & PAL)
  • CE, FCC certifications
  • 5.7 inch display
  • Camera diameter range: 3.9 to 28 mm
  • Camera length range: 0.3 to 30 meters
  • Double-molded, rubber-reinforced case design is water- and dustproof, and capable of withstanding drops from up to two meters high
  • Includes SD card storage of video, image, and audio files, as well as an on-board USB port for file transfer and battery charging
  • The included headset allows for easy voice annotation during deep-dive inspections to clarify findings and simplify reporting
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

  • 4GB SD card
  • USB/video out cables
  • Power adapters
  • Vehicle charger
  • Audio headset
  • Shoulder strap
  • Cleaning kit
  • Hard case
  • User manual (printed and on CD)

Description

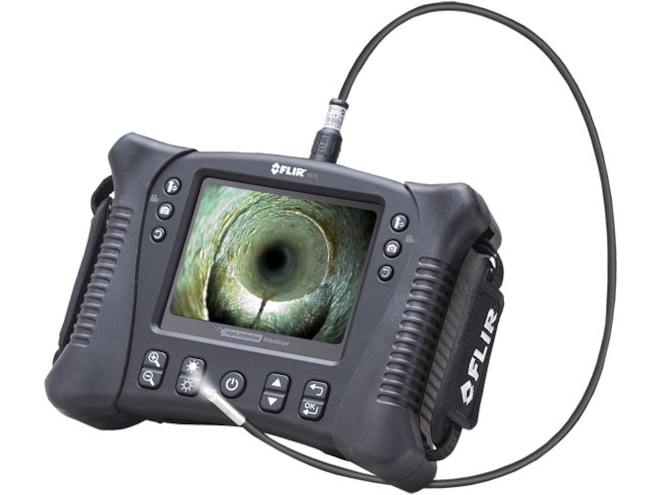

The FLIR VS70 is a rugged, waterproof and shock-resistant video borescope that features intuitive handset controls that enable users to maneuver the narrow camera probe into tight spaces to deliver vivid and sharp video and images to a large 5.7" color LCD display. Advanced inspection solutions, expansion cameras, and add-on accessories enable users to expand their FLIR VS70 to address many different inspection needs.

The FLIR VS70 is compatible with a wide range of videoscope cameras. A number of kits have been created which pairs the VS70 with a camera and accessories best-suited for a particular task. The kits available include:

  • VS70-1 General Purpose Long Focus, Wired: Includes VS70 + VSC80-1R 8.0mm camera with 1m semi-rigid probe, long focus
  • VS70-1W General Purpose Long Focus, Wireless: Includes VS70 + VSC80-1R 8.0mm camera with 1m semi-rigid probe, long focus + VST wireless 2.4Ghz transmitter
  • VS70-2 Small Opening Short Focus, Wired: Includes VS70 + VSC58-1RM 5.8mm camera with 1m semi-rigid probe, short focus
  • VS70-3 Articulation Combination Long Focus, Wired: Includes VS70 + VSA2-1 2-way 6mm articulated camera with 1m probe, long focus
  • VS70-4 4-Way Articulating VideoScope Kit, Wireless: Includes VS70 + VSA4-1-W 4-way 8mm Art Cam w 1m probe, long focus
  • VS70-4M 4-Way Articulating VideoScope Kit, Wireless: Includes VS70 + VSA4-1M-W 4-way 8mm Art Cam w 1m probe, short focus
  • VS70-5 2 Channel Engine Inspection VideoScope Kit, Wired: Includes VS70 + VSC2-58-1FM 2 Ch cam 5.8mm diameter 1m Flex probe, short focus
  • VS70-6 Stainless Steel Engine Inspection VideoScope Kit, Wired: Includes VS70 + VSS65-12S 6.5mm 12in stainless steel rigid camera, short focus
  • VS70-3W Articulation Combination Long Focus, Wireless: Includes VS70 + VSA2-1-W wireless, 2-way 6mm articulated camera with 1m probe, long focus
  • VS70-KIT Articulation Pro Kit, Wired: Includes VS70 + VSA2-1 2-way 6mm articulated camera with 1m probe, long focus + VSC80-1R 8.0mm camera with 1m semi-rigid probe, long focus
  • VS70-KIT-W Articulation Pro Kit, Wireless: Includes VS70 + VSA2-1-W wireless, 2-way 6mm articulated camera with 1m probe, long focus + VSC80-1R 8.0mm camera with 1m semi-rigid probe, long focus
