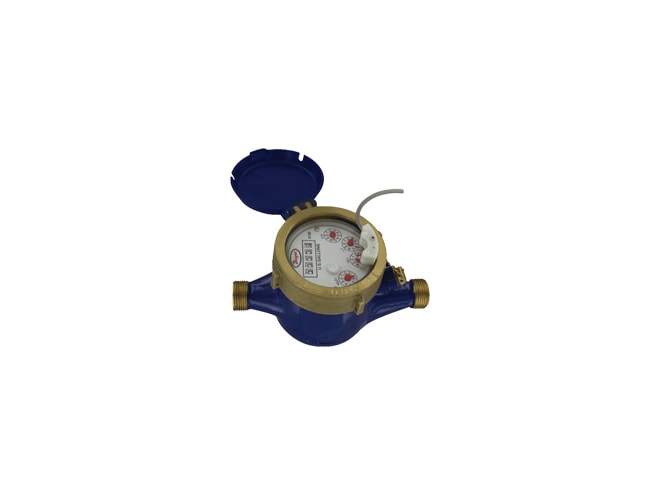

Dwyer WMT2 Multi-Jet Water Meter

Pulse output multi-jet water meter, flow ranges up to 160 GPM, hermetically sealed dry dial.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Flow ranges:
    • 1 GPM up to 160 GPM
    • 0.12 m³/h up to 15 m³/h
  • Accuracy:
    • transitional flow ±5%
    • Nominal flow ±2%.
  • Pulsed output
  • Hermetically sealed dry dial
  • 232 psi (16 bar) pressure limit
  • Integral strainer
  • Pointer roller indicator
  • Frost resistant body

The Dwyer WMT2 Multi-Jet Water Meter is ideal for commercial and industrial applications. The multi-jet design allows simplicity and accuracy with wide flow ranges even in low flow applications. The meter is designed for long service life and relatively maintenance-free operation, even under adverse conditions. The magnetically driven, hermetically sealed register will not leak or fog and is completely separated from the water. The reed switch is activated by a magnet on the dial, which is directly proportional to the flow rate. The output is perfect for remote monitoring of flow rate or flow totalization, and can interface with PLC's, counters, data loggers, and SCADA systems.

This product can be used in the following applications:
