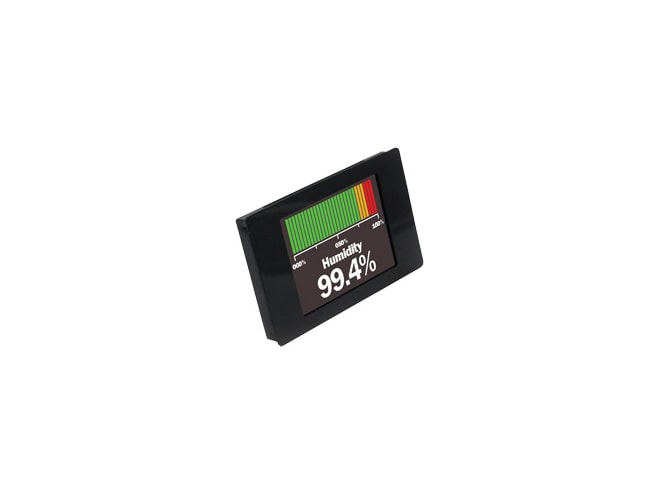

Dwyer SPPM Panel Meter
Starting at $114.00

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Inputs 0 to 40 VDC or 0 to 50 mA
  • 0.1% accuracy
  • 16-bit color touch screen display
  • Display resolution: 320 x 240 pixels
  • 0.3 to 9.8 mV resolution (depending on input range)
  • Fully field configurable
  • Panel mount

The Dwyer SPPM Panel Meter is a configurable, full-color touch-screen display that can be used in a variety of applications. Utilizing a USB connection, the panel meter can be configured with downloadable software, using any computer running Windows® based software. Available with either a 2.4", 2.8" or 3.5" screen that features remarkable graphics that can easily be customized to read and/or graph pressure, temperature, humidity, gas concentration, or many other parameters. Up to two transmitters or transducers can feed the panel meter's user scalable inputs (voltage models only).

Dwyer SPPM-CA USB Cable
Mini-USB to full USB cable
$11.50
Part Number Price Available
SPPM-24-C
Show Configuration
Base Price
$114.00
Display Size
2.4 inch display
Input
Current (+$11.00)
Reconfigure
$125.00 3

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 business days". Click here to select options
