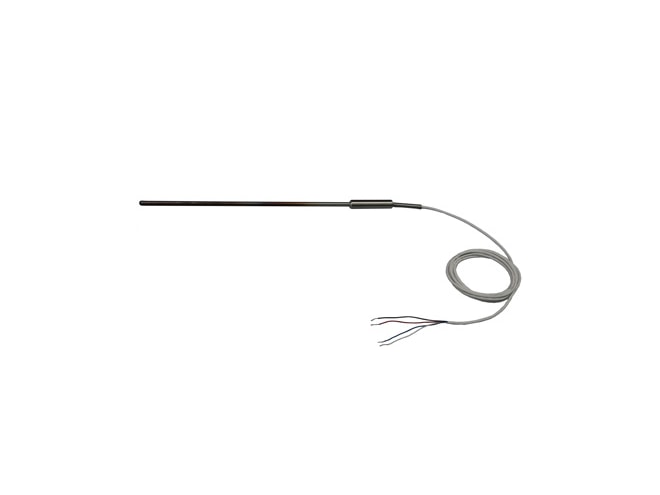

AccuMac AM1610 Precision Industrial PRT
-76 to 320°F stainless steel sheath platinum resistance thermometer
Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET
- -76 to 320°F (-60 to 160°C) temp range
- ±0.04°C drift rate
- Low stem conduction
- 316L SST sheath
- 100Ω nominal resistance
- Choose 9 or 12 inch probe length
- 0.187 inch (4.75mm) diameter w/9in
- 0.25 inch (6.35mm) diameter w/12in
AccuMac AM1610 Precision Industrial PRT uses a specially aged and tested, 5mm long sensing element. With very little heat loss along the sheath, it is a great tool for testing the vertical temperature uniformity of heat sources.
The sensing element is designed to protect the platinum sensing wire from contamination at high temperatures, giving the device a high level of stability and repeatability. A uniquely designed support structure and filling material provides an excellent balance between the hysteresis effect, mechanical shock and thermal shock performance.
