Kanomax Model 6710 TABmaster Capture Hood
$2,480.00

6710

Kanomax

1 in stock

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Measures and displays air flow, temperature and humidity
  • Ranges:
    • 23 to 2500 cfm (40 to 4250 m3/h) measuring range
    • 32 to 122°F (0 to 50°C) temp range
    • 0 to 100% RH humidity measuring range
  • Accuracy:
    • 3% of measuring accuracy
    • ±1°F (0 to 50°C) temp accuracy
    • ±3.0 %RH humidity accuracy
  • Stores up to 3,000 measurements
  • Displays direction of air flow
  • Built in back pressure compensation
  • One person set up and use

What's in the Box

  • 610x610mm hood
  • Carrying case
  • AA batteries
  • User manual
  • PC communication cable
  • PC software
  • Calibration cert

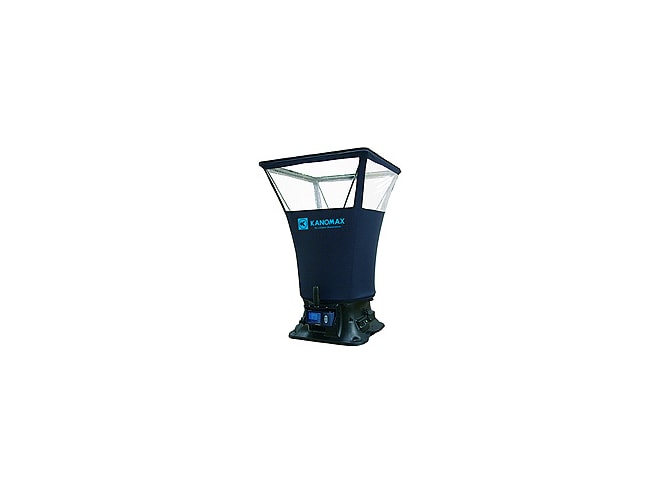

The Kanomax Model 6710 TABmaster Capture Hood is the perfect tool for accurate supply and return airflow measurements. Interchangeable hoods make is a snap to sample the air for any duct size. The TABmaster is light weight and easy to handle. The full color screen can be tilted so it's at the optimal viewing angle at any height.

The Model 6710 has an air flow measuring range of 23 to 2500 CFM (40 to 4250 m3/h) with an accuracy of 3% of measuring +/- 10 m3/h. Along with measuring air flow, temperature and humidity the 6710 also displays the direction of the airflow. The temperature measuring range is 32 to 122°F (0 to 50°C) temp range and humidity range of 0 to 100 %RH. The unit comes with a 610x610mm hood standard. There are 610x1220mm, 305x1220mm, 500x500mm, 915x915mm, 915x610mm hood sizes available as accessories.

Applications for the Kanomax Model 6710 TABmaster Capture Hood include:

  • HVAC testing, adjusting and balancing
  • Air volumetric flow measurement through registers, diffusers and grilles
  • Direct readout at supply and return airflow
  • Air velocity measurement in the duct
