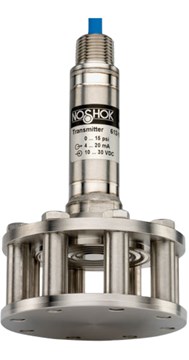

NOSHOK 613 Series Submersible Level Transmitters
Cage protected, designed for severe high solids environments, ranges from (0 inH2O to 50 inH2O) through (0 psi to 300 psi).
- By NOSHOK
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Advanced diffused semi-conductor and sputtered thin film sensor for maximum stability
- Ranges from (0 to 50 inH2O) through (0 to 300psi)
- Corrosion resistant stainless steel construction
- Output signals:
- 4 to 20 mA, 2-wire
- 0 to 5 Vdc and 0 to 10 Vdc, 3-wire
- 0.5 to 2.5 Vdc, 3-wire
- Accuracy:
- ±0.25% full scale (BFSL)
- ±0.125% full scale (BFSL)option
- 3 year warranty
- Welded at cap and base to provide a leak-tight seal
- Proof pressure 2 times range
- Burst pressure 4 times range
- Submersible 1/2″ NPT conduit electrical connection
- Integrated temperature measurement (PT100 RTD) option
Description
The NOSHOK 613 Series Cage Protected Submersible Level Transmitters are designed for severe high solids environments such as sewage, lift stations, storm canals, wet wells and slurry tanks where sludge, slurry or turbulence may be present. The 613 Series is ideal for a wide variety of industrial and municipal liquid level measurement applications requiring watertight protection. The 613 is welded at the cap and base to provide a leak-tight seal.
The NOSHOK 613 Series Cage Protected Submersible Level Transmitters have ranges of 0 in H2O to 50 in H2O through 0 psig to 300 psig. The 613 Series also has an accuracy of ±0.25% full scale (BFSL)and an optional ±0.125% full scale (BFSL). Reverse polarity protection and short circuit protection come standard. The unit is built with corrosion resistant 316L stainless steel construction.
Applications for the 613 Series Cage Protected Submersible Level Transmitters include:
- Sewage
- Lift stations
- Storm canals
- Wet wells
- Slurry tanks
Documents
Applications
This product can be used in the following applications:
In Stock
Manufacturer Stock
Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.
Part Number | Price | Available | |
---|---|---|---|
613-10-1-1-100 |
$2,140.19 | 9 in stock | |
613-10-1-1-100-LR |
$2,169.07 | 9 in stock | |
613-10-1-1-125 |
$2,287.44 | 9 in stock | |
613-10-1-1-15 |
$1,639.54 | 9 in stock | |
613-10-1-1-150 |
$2,434.69 | 9 in stock | |
613-10-1-1-20 |
$1,668.99 | 9 in stock | |
613-10-1-1-25 |
$1,698.44 | 9 in stock | |
613-10-1-1-25-LR |
$1,727.32 | 9 in stock | |
613-10-1-1-50 |
$1,845.69 | 9 in stock | |
613-10-1-1-50-FE |
$1,867.22 | 9 in stock | |
613-10-1-1-50-LR |
$1,874.57 | 9 in stock | |
613-10-1-1-75 |
$1,992.94 | 9 in stock | |
613-10-1-1-75-LR |
$2,021.82 | 9 in stock | |
613-10-2-1-100 |
$2,314.70 | 9 in stock | |
613-15-1-1-100 |
$2,140.19 | 9 in stock | |
613-15-1-1-20 |
$1,668.99 | 9 in stock | |
613-15-1-1-50 |
$1,845.69 | 9 in stock | |
613-15-1-1-50-FE |
$1,867.22 | 9 in stock | |
613-15-1-1-50-LR |
$1,874.57 | 9 in stock | |
613-15-1-1-75 |
$1,992.94 | 9 in stock | |
613-15-1-1-75-LR |
$2,021.82 | 9 in stock | |
613-10-1-1-50-DC |
$1,892.62 | 6 in stock | |
613-10-1-11-20-DC |
$1,892.94 | 6 in stock | |
613-15-1-1-25-DC |
$1,745.37 | 6 in stock | |
613-15-1-1-50-DC |
$1,892.62 | 6 in stock | |
613-150-1-1-50 |
$1,845.69 | 3 in stock | |
613-150-1-1-50-LR |
$1,874.57 | 3 in stock | |
613-30-1-1-100 |
$2,140.19 | 3 in stock | |
613-30-1-1-100-LR |
$2,169.07 | 3 in stock | |
613-30-1-1-150 |
$2,434.69 | 3 in stock | |
613-30-1-1-150-LR |
$2,463.57 | 3 in stock | |
613-30-1-1-50 |
$1,845.69 | 3 in stock | |
613-30-1-1-50-LR |
$1,874.57 | 3 in stock | |
613-30-1-1-75-LR |
$2,021.82 | 3 in stock | |
613-300-1-1-100 |
$2,140.19 | 3 in stock | |
613-300-1-1-50 |
$1,845.69 | 3 in stock | |
613-300-1-1-50-LR |
$1,874.57 | 3 in stock | |
613-5-1-1-100-LR |
$2,169.07 | 3 in stock | |
613-5-1-1-15 |
$1,639.54 | 3 in stock | |
613-5-1-1-20-DC |
$1,715.92 | 3 in stock | |
613-5-1-1-25 |
$1,698.44 | 3 in stock | |
613-5-1-1-25-FE |
$1,719.97 | 3 in stock | |
613-5-1-1-25-JB |
$1,931.75 | 3 in stock | |
613-5-1-1-25-LR |
$1,727.32 | 3 in stock | |
613-5-1-1-50 |
$1,845.69 | 3 in stock | |
613-5-1-1-50-FE |
$1,867.22 | 3 in stock | |
613-5-1-1-50-LR |
$1,874.57 | 3 in stock | |
613-5-1-1-75 |
$1,992.94 | 3 in stock | |
613-100-1-1-50 |
$1,845.69 | 2 in stock | |
613-100-1-1-50-LR |
$1,874.57 | 2 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
Need Help? Call a Calibration engineer at 1-800-884-4967
