$6,445.00
$6,122.75

2129.83

AEMC

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • Programmable from 5 to 200A (True DC) test current
  • Resistance ranges:
    • 0.1µΩ to 2mΩ
    • 2 to 200mΩ
    • 200mΩ to 1Ω
  • ±1% of reading from 50µΩ to 1Ω accuracy
  • Low resolution of 0.1µΩ
  • Large LCD digital display
  • Programmable Test Duration to 120 seconds
  • Stores up to 8000 measurements
  • Measurement method: four-terminal, Kelvin-type

What's in the Box

  • Set of 20ft Kelvin test leads with C Clamp
  • Ground lead with clamp
  • 5 foot USB cable
  • 110 power cord
  • USB stick (DataView Software and manual)

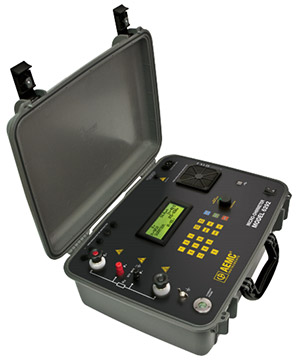

The AEMC Model 6292 Micro Ohmmeter is a portable, microprocessor-controlled instrument. It incorporates optimized filters and protection for measurements in electrical substations. The Model 6292 can be used to accurately measure very low contact resistances on high voltage circuit-breakers and switches, busbars, etc., with test currents up to 200A. It employs the 4 terminal-method Kelvin principle to eliminate errors caused by test leads and their contact resistances.

Measurement accuracy is assured through a state-of-the-art signal amplification system, offset-free with high long-term stability. Resistance readings are shown in the alphanumeric display with up to 4½ digit resolution. It allows measurement of resistances up to 1Ω with resolution as low as 0.1µΩ. Test currents may be adjusted by the operator and are displayed on the digital display.

The AEMC Model 6292 Micro Ohmmeter tests:

  • Switchgear contact resistance
  • Circuit breaker contact resistance
  • Air frame bonding
  • Rail bonding
  • Pipeline bonding

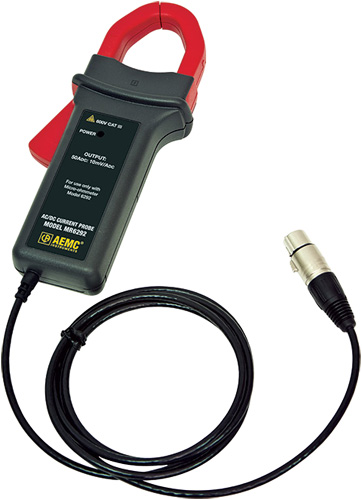

AEMC MR6292 AC/DC Current Probes
AC/DC Current Probes for the 6292 Micro Ohmmeter
$295.00
AEMC 2129.87 Kelvin Leads
Set of 50' color coded Kelvin Leads w/ C Clamp
$1,739.00

Applications

This product can be used in the following applications:
