Overview

Features

  • AC/DC Current Range: 1000A, accuracy: ±2.5%
  • AC/DC Voltage Range: 1000V, accuracy: ±1.5%
  • Resistance: Range: 40.00MΩ, accuracy: ±1.5%
  • Capacitance Range: 4.000µF, accuracy: ±3%
  • Frequency Range: 4000Hz, accuracy: ±1.5%
  • IR temperature range: -4 to 518°F, ±2% accuracy, 8:1 D:S
  • Type K temperature range:-4 to 1400°F, ±3% accuracy
  • Rating: CAT IV-600V, CAT III-1000V
  • Integrated IR Thermometer provides fast non-contact measurements on panels, conduits, and motors
  • Powerful worklights not only assist with clamping but are bright enough to serve as the primary worklight
  • FLIR Tools Mobile connects to compatible smartphones and tablets via Bluetooth
  • METERLiNK technology wirelessly integrates electrical readings on your infrared image with FLIR Thermal Cameras
  • Min, max, average, auto power off, data hold, relative, peak hold, battery status indicator, bright white LED backlight
  • Limited lifetime warranty

Description

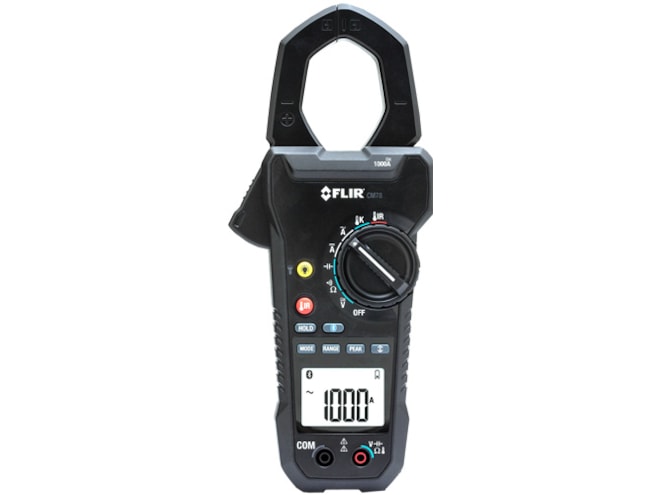

The FLIR CM78 clamp meter with IR thermometer is a true RMS, industrial grade 1000A clamp meter for the electrician who needs a safe, capable combination tool. Combining a number of features and backed by a limited lifetime warranty, the CM78 is rated CAT IV-600V and CAT III-1000V.

The FLIR CM78 clamp meter with IR thermometer measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, as well as both contact and non-contact temperature. The integral infrared thermometer has a range of -4 to 518°F and is perfect for taking non-contact temperature readings on panels, conduits, and motors. The CM78 is also compatible with type K thermocouples for making contact temperature readings from -4 to 1400°F.

The FLIR CM78 includes a powerful, built-in work light designed to help with clamping but powerful enough to serve as a primary work light. For applications in which connectivity to other instruments or devices is necessary, the FLIR CM78 includes two. METERLiNK technology is included which wirelessly integrates electrical readings on infrared images with FLIR Thermal Cameras. Also, the CM78 includes FLIR Tools Mobile which connects to compatible smartphones and tablets via Bluetooth. The FLIR CM78 clamp meter with IR thermometer also includes min/max/average, auto power off, data hold, relative, peak hold, battery status indicator, and a bright white LED backlight.

The FLIR CM78 clamp meter with IR thermometer ships complete with:

  • 6 AAA batteries
  • User manual/CD
  • CAT IV silicon test leads
  • Limited lifetime warranty

In Stock

Manufacturer Stock

This stock is typically available to ship in 3 - 5 working days.

Part Number Price Available
CM78
$399.99 50 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
