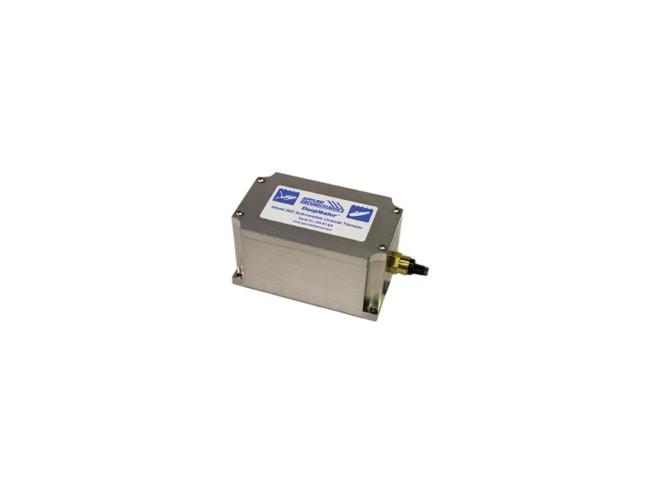

Jewell Instruments D802 DeepWater Digital Tiltmeter
Digital submersible tiltmeter, high pressure applications and corrosive environments, 316 stainless steel body.
Overview
Features
- Submersible Tiltmeter
- Range: ±5°/±50°
- Uniaxial or biaxial
- Resolution: 0.0001°/0.002°
- Output: RS232 or RS422, full duplex
- High pressure or corrosive environments
- 316 stainless steel housing
- Underwater mateable neoprene connector
- Two gravity referenced electrolyte tilt sensor
Description
The Jewell Instruments D802 DeepWater Digital Tiltmeter is designed for underwater measurements and other applications in high-pressure or corrosive environments. The housing is machined from a solid block of 316 stainless steel and incorporates a high-pressure, underwater-mateable neoprene connector.
Inside the D802 DeepWater Digital Tiltmeter are one or two gravity-referenced electrolytic tilt sensors and low-noise electronics, delivering precision, high dynamic range and long-term stability under the most demanding conditions. DeepWater tiltmeters are excellent choices for offshore applications and for monitoring dams, pipelines and underwater machinery. DeepWater tiltmeters are also available with 4-20 mA and analog voltage outputs.
