FLUKE-810

Fluke

Usually ships in 2-3 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • Plain-text diagnosis of standard faults:
    • Unbalance
    • Looseness
    • Misalignment
    • Bearing failures
  • Fault severity (slight, moderate, serious, extreme)
  • 200 rpm to 12000 rpm machine rotational speed range
  • 5 Hz to 20 kHz Usable frequency bandwidth
  • 2.56 kHz to 51.2 kHz sampling rate
  • Lithium-ion, 14.8 V, 2.55 Ah battery
  • 1/4 VGA, 320 × 240 color display
  • Auto ranging

What's in the Box

  • Tri-axial TEDS accelerometer
  • Accelerometer magnet mount & mounting pad kit
  • Accelerometer quick-disconnect cable
  • Laser tachometer & storage pouch
  • Smart battery pack with cable & adapters
  • Shoulder strap
  • Adjustable hand strap
  • Viewer PC software
  • mini-USB to USB cable
  • Getting started guide
  • Illustrated quick reference guide
  • Users manual CD-ROM
  • Training DVD
  • Hard carrying case

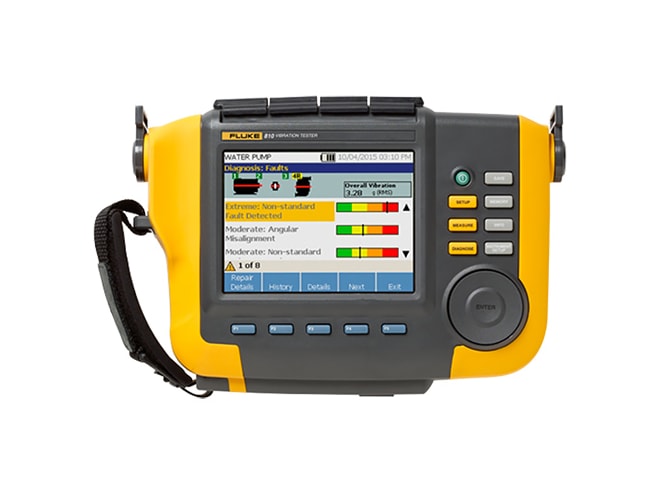

The Fluke 810 Vibration Tester is the most advanced troubleshooting tool for mechanical maintenance teams who need an answer now. The unique diagnostic technology helps you quickly identify and prioritize mechanical problems, putting the expertise of a vibration analyst in your hands.

You take pride in your facility, your team, and your work. You do what it takes to keep things up and running, but sometimes there is not enough time or resources to keep up with the workload, let alone be proactive about mechanical maintenance. The Fluke 810 Vibration Tester puts you one step ahead by using a simple step-by-step process to report on machine faults the first time measurements are taken, without prior measurement history. The combination of diagnoses, severity and repair recommendations help you make informed maintenance decisions and address critical problems first.

The Fluke 810 Vibration Tester is capable of:

  • Troubleshoot problem equipment and understand the root cause of failure
  • Survey equipment before and after planned maintenance and confirm the repair
  • Commission new equipment and ensure proper installation
  • Provide quantifiable proof of equipment condition and drive investment in repair or replacement
  • Prioritize and plan repair activities and operate more efficiently
  • Anticipate equipment failures before they happen and take control of spare parts inventories
  • Train new or less-experienced technicians and build confidence and skill across the team

Additional features of the Fluke 810 Vibration Tester include:

  • On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
  • Fault severity scale with four severity levels help you prioritize maintenance work
  • Repair recommendations advise technicians on corrective action
  • On-board context sensitive help provide real-time tips and guidance to new users
  • 2 GB expandable on-board memory provides enough space for your machinery's data
  • Self-test function ensures optimal performance and more time on the job
  • Laser tachometer for accurate machine running speed promotes confident diagnoses
  • Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers
  • Viewer PC Software expands data storage and tracking capacity

Accessories

Please consider these optional accessories.

Fluke 810 Vibration Tester Training
Fluke-810 vibration tester training program book
$2,999.99
Fluke 810SC-20 Sensor Cable
20ft extension cable, used to connect the triaxial vibration sensor (810S) to the Fluke 810 vibration tester
$179.99
Fluke Professional Tool Backpack
Durable high-quality polyester, injection molded plastic bottom base, six storage compartments
$199.99

Spare Parts

Fluke 810S Replacement Accelerometer
Replacement 80g peak accelerometer sensor with 100 mV/g (±5%, 25°C) sensitivity for the Fluke 810 Vibration Meter
$1,499.99
Fluke 810T Replacement Tachometer
6 to 99,999 rpm measurement range, for the Fluke 810 Vibration Meter
$149.99
Fluke 810QDC Quick Disconnect Cable
Shielded PVC cable with 4-pole connectors, 12in section is male coupling to female push connector and 84in section is the reverse
$179.99
Fluke 810PA AC Power Adapter
100 to 240VAC (50/60Hz) with international plug set
$89.99
