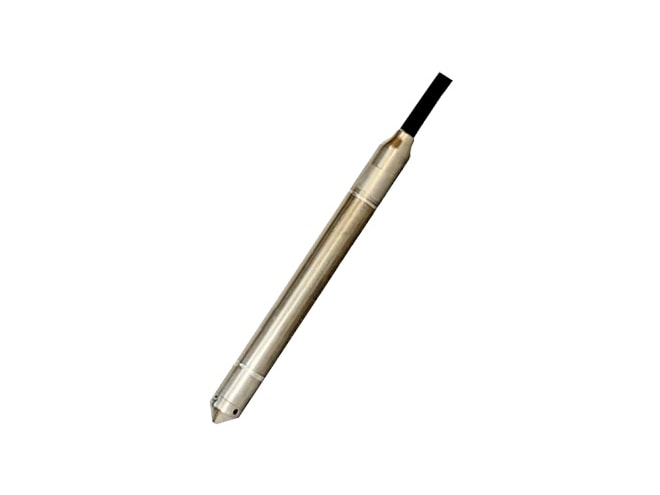

Flowline LD34 DeltaSpan Pressure Level Transmitter

Welded 316 SS body, provides continuous level measurement up to 100’ (30.4m) of water column with a 4-20mA signal output.

Retired products cannot be ordered

View Company Reviews

Manufactured

By Flowline

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Model LD34 Small-Bore Pressure Level Transmitter
Ranges from (0 to 5 psi) up to (0 to 43.3 psi)
Accuracy ±0.25% of full scale
4-20 mA, two-wire signal output
Process temp: -4 to 176°F (-20 to 80°C)
2 x full scale proof pressure
Welded 316 SS body and 316 SS nose cap
±0.45% FS TEB thermal effect
Response time: less than 50ms
Tapered body top prevents damage or snaring
Incorporates lighting and surge protection

The Flowline LD34 DeltaSpan Pressure Level Transmitter is a general purpose small-bore submersible pressure level transmitter that provides continuous level measurement up to 100' (30.4m) of water column with a 4-20 mA signal output. Select the LD34 liquid level sensor for relatively clean water. Application examples include ballast tanks, ground water monitoring, surface water monitoring, dewatering, down hole, and remediation.

Additional features / benefits of the Flowline LD34 DeltaSpan Pressure Level Transmitter include:

Welded 316 SS body and 316 SS nose cap provide years of trouble free service
Tapered body top prevents damage or snaring when removing from installation
Incorporates lighting and surge protection
Provides precise output readings with its ±0.25% of full scale accuracy
Ideal for applications with heavy foam and vapors
Connects directly to PLC/SCADA or display
Comes with a polyurethane cable and is vented for barometric pressure compensation
Maintenance-free vent filter prevents water droplets and other particulates from fouling transmitter
