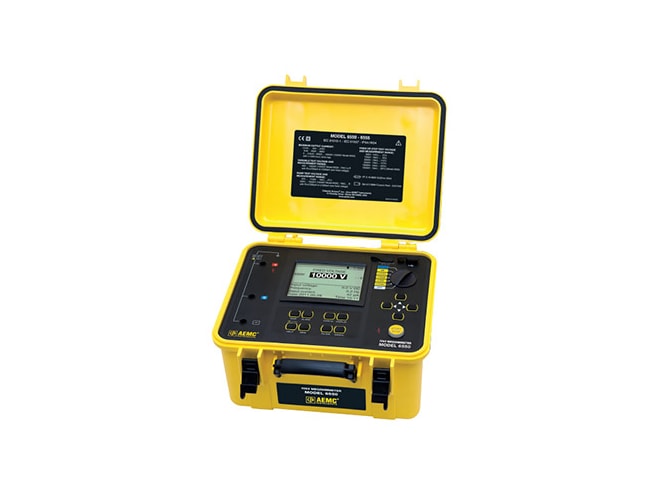

AEMC Model 6555 Megohmmeter
$5,995.00
$5,695.25

2130.32

AEMC

Usually ships in 2-3 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • Test voltage up to 15kV
  • Adjustable test voltage between 40V and 15kV
  • Ramp voltage measurements from 40 to 1100V
  • Step voltage measurements from 40 to 15kV
  • Non-destructive test
  • Digital filtering of insulation measurements
  • Live measurement of the voltage
  • Programmable thresholds to trigger audible
  • Timed measurement duration checks
  • Fuse protection with display
  • Stores up to 80,000 measurements
  • Optically-isolated USB communication

The Megohmmeter Model 6555 is a high-end portable measuring instrument intended for the measurement of a wide variety of electrical insulation resistance values on cables and devices operating at high voltage. It is the only fully automated 15,000V graphical insulation tester. The Model 6550 is packaged in a rugged case that is IP54 when closed. Test results and configuration information is provided on a graphical LCD screen as well as exportable through the use of DataView® software provided. This megohmmeter can operate on battery or AC power while testing.

The Model 6555 also offers the ability to program up to three step voltage profiles (from 40 to 15,000V), each containing up to ten steps. There are also three ramp profiles and three programmable test voltages in addition to the standard fixed voltages of 500, 1000, 2500, 5000, 10,000 and 15,000V.

Applications include:

  • Acceptance testing and preventive maintenance
  • Test motors, pumps, valves, cables, switchgears and electrical wiring installations
  • Continuity checks
  • High resistance or absorption tests
  • Spot reading tests
  • Timed resistance measurements
  • Dielectric Absorption Ratio (DAR) and Polarization Index (PI) tests
  • Multi-layer insulation testing (DD)
  • Test old or water damaged installations over long time periods
  • Motor insulation resistance measurements
