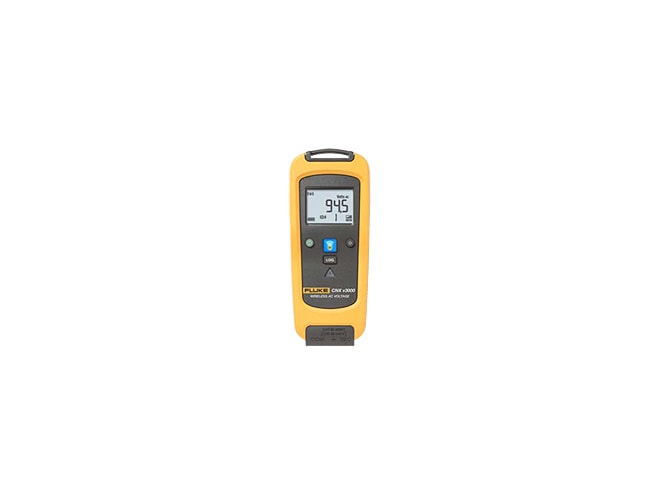

Fluke FLK-CNX V3000 AC Voltage Module

Retired products cannot be ordered

The Fluke V3000 FC is the recommended replacement

View Company Reviews

Part Number

FLK-CNX V3000

Manufactured

By Fluke

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Specs

Features

AC voltage ranges 6.000V, 60.00V, 600.0V, 1000V
Accuracy:
- 1.0% +3 at 45 Hz to 500 Hz
- 2.0% +3500 Hz to 1 kHz
Records up to 65,000 readings
Operating temp: 14 to 122°F (-10 to 50°C)
3 1/2" digit LCD backlight display
IP42 ingress protection rating
2 AA, NEDA 15 A, IEC LR6 batteries

This product is an accessory for the following products:

Fluke FLK-CNX Wireless Digital Multimeter

Displays readings from up to three wireless modules from up to 20 meters away.

RETIRED

The Fluke FLK-CNX V3000 AC Voltage Module wirelessly relays measurements to the CNX 3000 Wireless Multimeter. The AC Voltage Module accuracy is specified as ± ([% of reading] + [number of least significant digits]). All ranges are autoranging. Accuracy is specified from 5 % to 100 % of the range obtained by autoranging, from 64°F(18°C) to 82°F(28°C).

Connect the CNX V3000 AC Voltage Module to your test point, and view the results up to 20 meters away on the CNX Wireless Multimeter. You'll save time, with less run-around, collecting multiple measurements. Use multiple modules for measurements on three-phase systems. Or use as a stand-alone measurement tool or combine with other CNX modules as a system for multiple measurements. From short distances, you can even view readings from modules through closed electrical panels. Plus, no more writing down data as the CNX V3000 AC Voltage Module captures up to 65,000 readings, using the optional PC adapter. CNX wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm's way.
