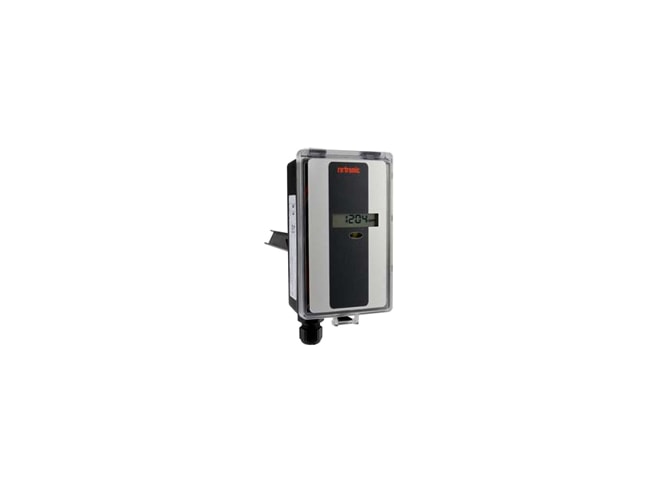

Rotronic CF5 Series CO2 / Temperature Transmitters

Measurement ranges 0 to 3,000 ppm carbon dioxide and 30 to 120°F (0 to 50°C) temperature, accuracy of ±30 ppm.

Features

  • Measurement ranges:
    • CO2; 0 to 3,000 ppm
    • Temperature; 30 to 120°F (0 to 50 °C)
  • Measurement technique: Non-Dispersive InfraRed (NDIR) with automatic calibration
  • Accuracy: ±30 ppm
  • Power supply: 16...29 VDC/AC
  • Output 1 (0...2,000 ppm): 0/2…10 VDC or 0/4…20 mA
  • Output 2 (0...50 °C): 0/2…10 VDC or 0/4…20 mA
  • Range of application: 0…50 °C (30...120 °F) / 0…95 %RH
  • Maintenance: not necessary
  • Lifetime: >15 years

The Rotronic CF5 Series CO2 / Temperature Transmitters measure CO2 concentration within the range of 0 to 2000ppm as well as temperature within the range of 32 to 122°F (0 to 50°C). The CF5 has 2 analog outputs: one for CO2 concentration and the other for temperature. Each output can be configured for a signal type of 0 to 10VDC, 2 to 10VDC or 4 to 20mA.

Applications for ventilation control in:

  • Residential properties
  • Offices
  • Classrooms
  • Cinemas
  • Hospitals
